Product Overview

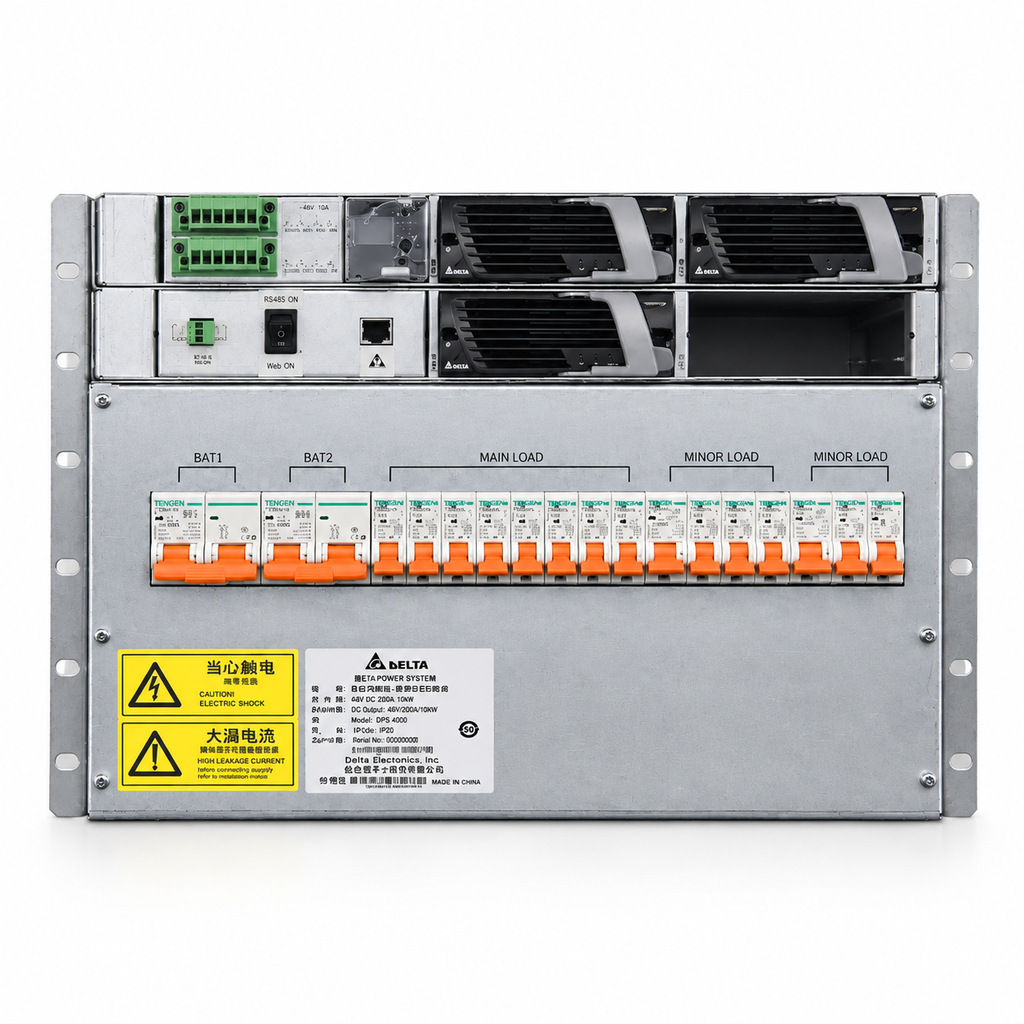

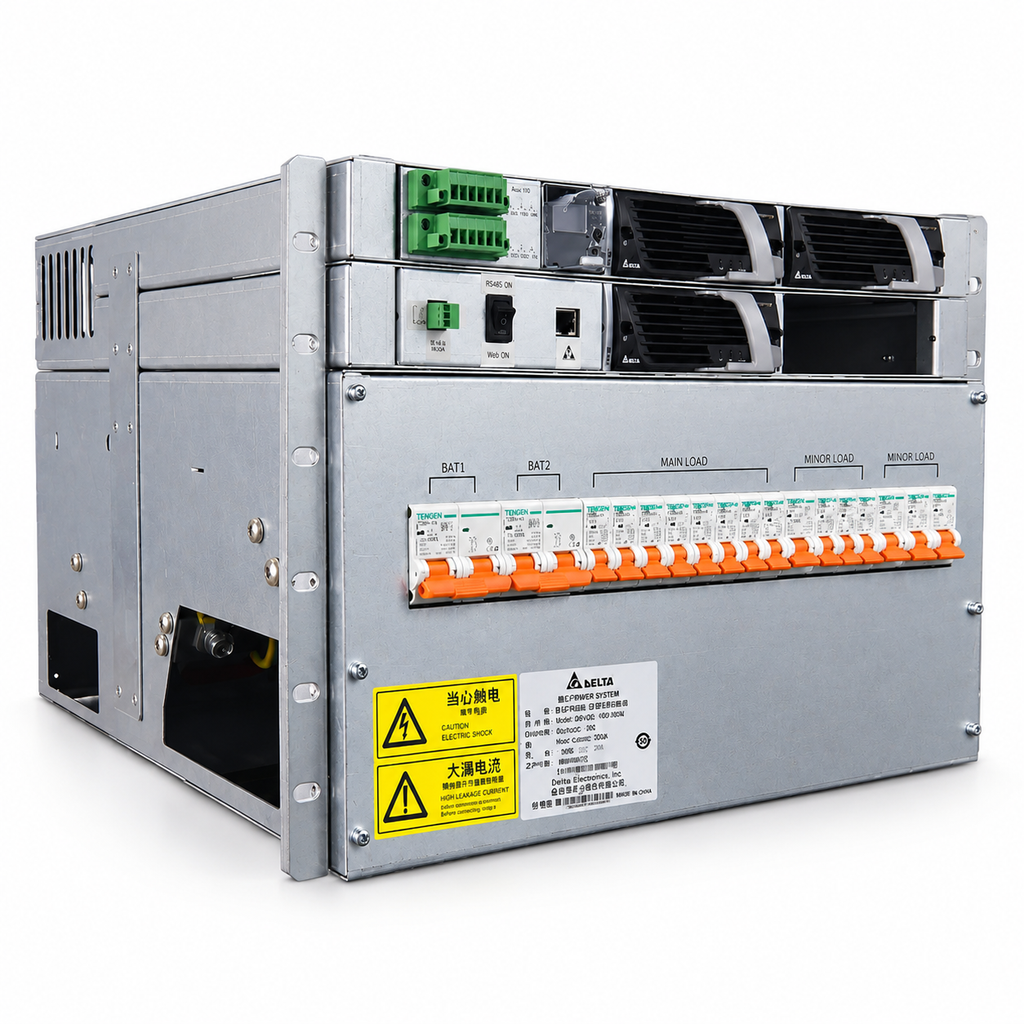

The Delta DPS 4000 Series is an indoor -48 VDC power system rated for 200 A of system current and up to 10 kW of output power, housed in a 4U, 486.6 x 300.8 x 441 mm chassis weighing 28 kg. The ESBC200-CEA fact-sheet configuration targets telecom access sites, enterprise equipment rooms and industrial DC loads that need reliable 48V power in a compact rack footprint.
The system provides a regulated -43 to -58 VDC output window and operates at 94.9% efficiency, reducing energy loss and heat dissipation in confined cabinets. Its operating range of -10 to +55 degC supports unconditioned indoor sites such as base station equipment rooms and customer premises enclosures.

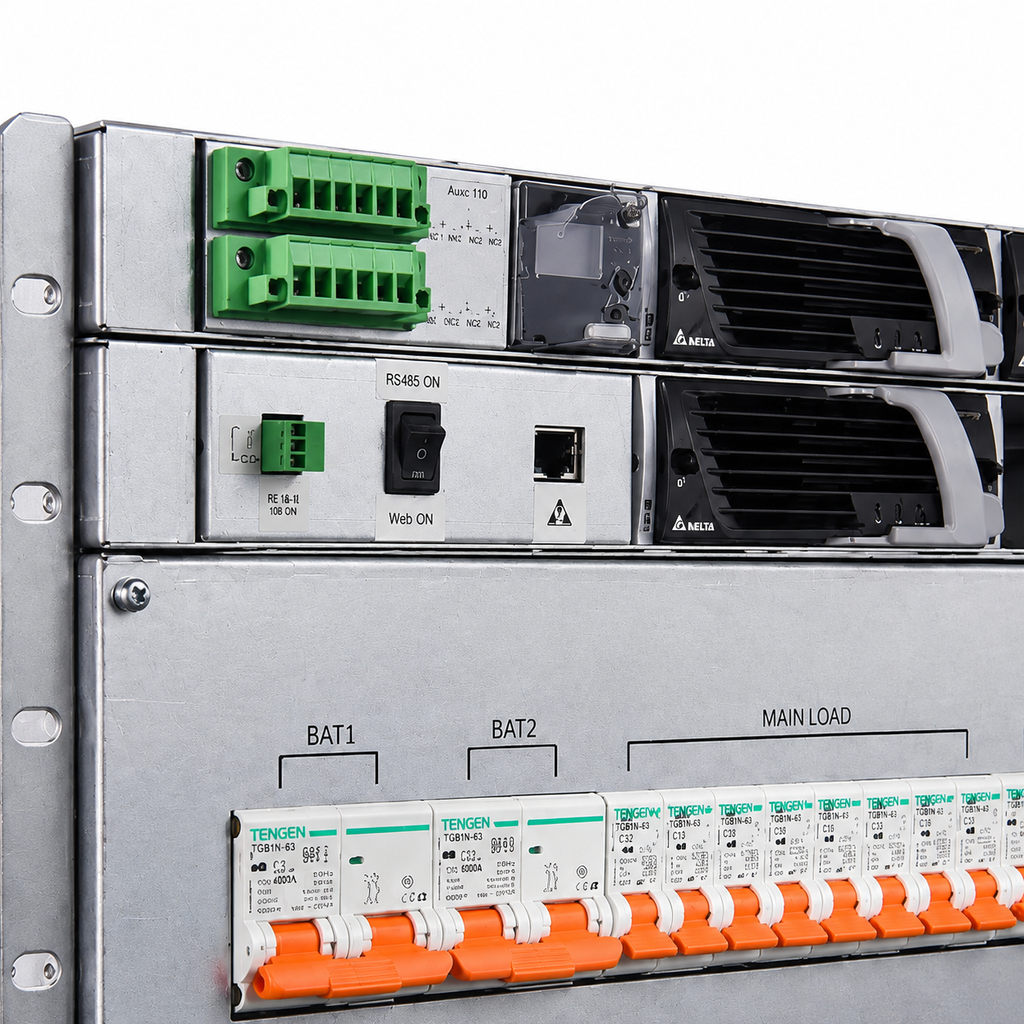

DPS 4000 accepts Delta flat rectifier modules for hot-plug capacity growth and integrates system monitoring and battery management for -48 VDC plant supervision. The combination of 4U packaging, 10 kW capacity and high efficiency makes it a practical mid-size system between embedded 1U-2U plants and full-size rack power shelves.
Key Features
- Up to 10 kW / 200 A output in a compact 4U cabinet
- Regulated -43 to -58 VDC output for 48V telecom equipment
- 94.9% operating efficiency for lower energy loss
- Wide -10 to +55 degC operating range for unconditioned indoor sites
- 28 kg rack chassis suited to cabinets and equipment rooms
- Hot-plug rectifier capacity growth with system monitoring
Specifications
| Parameter | Value |
|---|---|
| Capacity | 200 A system current; up to 10 kW output power |
| Voltage | Output -43 to -58 VDC |
| Dimensions | 4U, 486.6 x 300.8 x 441 mm (W x D x H) |
| Weight | 28 kg |
| Operating Temperature | -10 to +55 degC |
| Efficiency | 94.9% |
| Other | ESBC200-CEA series fact-sheet configuration; indoor rack-mounted 48VDC plant |
Key Features of DPS 4000 Series
DPS 4000 Series is part of the 48 V DC power system family widely used in telecom and data applications. Systems of this class commonly combine rectifier modules, monitoring controllers and distribution units in rack or cabinet formats.
Typical Applications of DPS 4000 Series
DC power systems of this type are widely used in telecom equipment rooms, base station sites, data centers and industrial control environments that require reliable -48 V DC power.
Selecting DPS 4000 Series with BS Comtec
BS Comtec supplies DC power systems and rectifier modules from Vertiv, Huawei, ZTE, Eltek and other brands with global delivery. Tell us your load budget, battery requirements and installation space for a tailored proposal.
Frequently Asked Questions
How do I size DPS 4000 Series for my site?
Start from your steady-state and peak DC load, redundancy requirements (N+1 or 2N), battery backup time and expansion plans. BS Comtec can model these figures and propose a suitable configuration.
Can DPS 4000 Series work with my existing rectifiers or batteries?
It depends on voltage range, communication protocols and mechanical compatibility. Provide your current system details and BS Comtec will review interfaces and recommend a compatible combination.
How is DPS 4000 Series shipped and delivered?
Systems and modules are packed for international freight, and lead times vary by model and destination. Contact BS Comtec for current availability, shipping options and delivery schedules.
What warranty and support come with DPS 4000 Series?
Warranty follows the manufacturer’s policy for the ordered configuration. BS Comtec assists with commissioning guidance, spare module supply and service coordination where required.
Where is DPS 4000 Series typically deployed?
It is commonly deployed in telecom central offices, outdoor cabinets, data centers and industrial facilities that rely on stable -48 V DC distribution.
