Product Overview

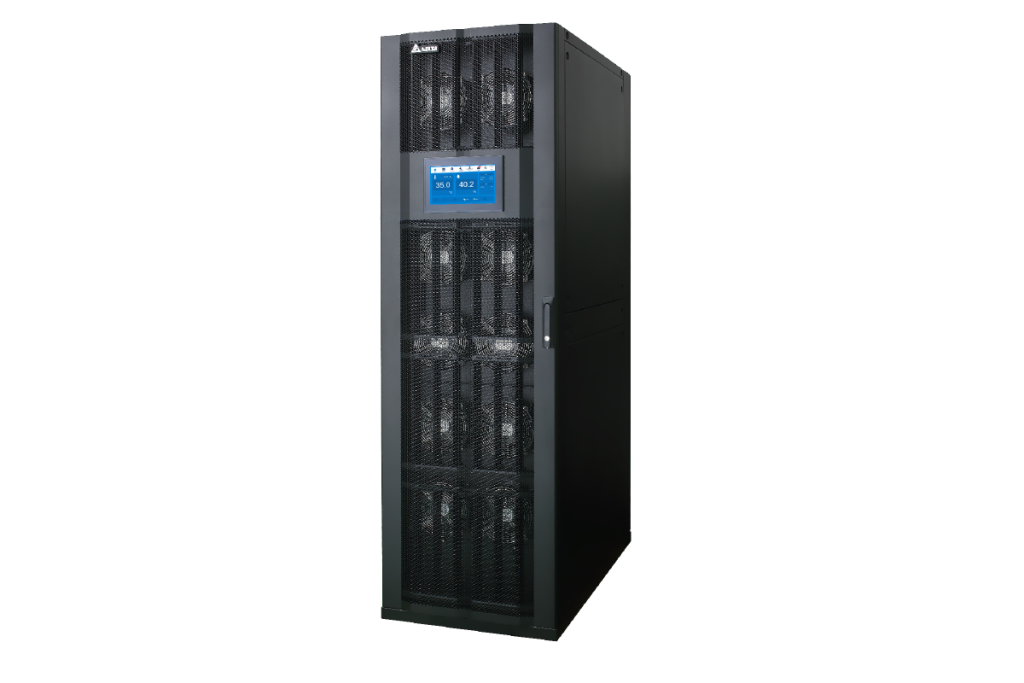

RowCool R series units sit directly between server racks, close to the heat source, as part of Delta’s InfraSuite data center infrastructure. The R-30 delivers 30 kW of cooling from a frame only 300 mm wide (300 x 1090 x 2000 mm, 216 kg), while the R-45 raises capacity to 45.6 kW in a 600 mm-wide frame (600 x 1090 x 2000 mm, 300 kg).
Both units use R410A refrigerant with EC fans and a DC inverter compressor that modulates cooling capacity steplessly from 20 to 100%, matching compressor output to the actual IT load. Local monitoring and configuration are handled through a 10-inch LCD touch panel, and Delta publishes the InfraSuite RowCool DX R-30/45 kW leaflet with full data.
- In-row DX cooling placed directly between server racks
- R-30: 30 kW in a 300 mm-wide frame (300 x 1090 x 2000 mm, 216 kg)
- R-45: 45.6 kW in a 600 mm-wide frame (600 x 1090 x 2000 mm, 300 kg)
- DC inverter compressor with 20-100% stepless capacity modulation
- EC fans and R410A refrigerant
- 10-inch LCD touch panel for local monitoring
| Models | R-30 / R-45 |
| Cooling Capacity | 30 kW (R-30); 45.6 kW (R-45) |
| Dimensions | R-30: 300 x 1090 x 2000 mm, 216 kg; R-45: 600 x 1090 x 2000 mm, 300 kg |
| Refrigerant | R410A |
| Compressor | DC inverter, 20-100% modulation |
| Fans | EC fans |
| Display | 10-inch LCD |
| Product Family | Delta InfraSuite |
Frequently Asked Questions
How do I choose the right Delta InfraSuite RowCool for my site?
Consider capacity, site power, environment and monitoring needs. Share your requirements with BS Comtec and we will compare suitable models from multiple brands for you.
Is Delta InfraSuite RowCool compatible with my existing equipment?
Compatibility depends on your electrical infrastructure and connected devices. Our engineers can review your setup and confirm interfaces and integration before you order.
Does BS Comtec ship Delta InfraSuite RowCool internationally?
Yes. BS Comtec ships worldwide and freight options depend on destination, weight and urgency. Contact us for a shipping quote to your location.
What warranty and after-sales support are available for Delta InfraSuite RowCool?
Warranty follows the manufacturer policy for your region, and BS Comtec provides technical documentation and engineer-level support throughout the project.
