Product Overview

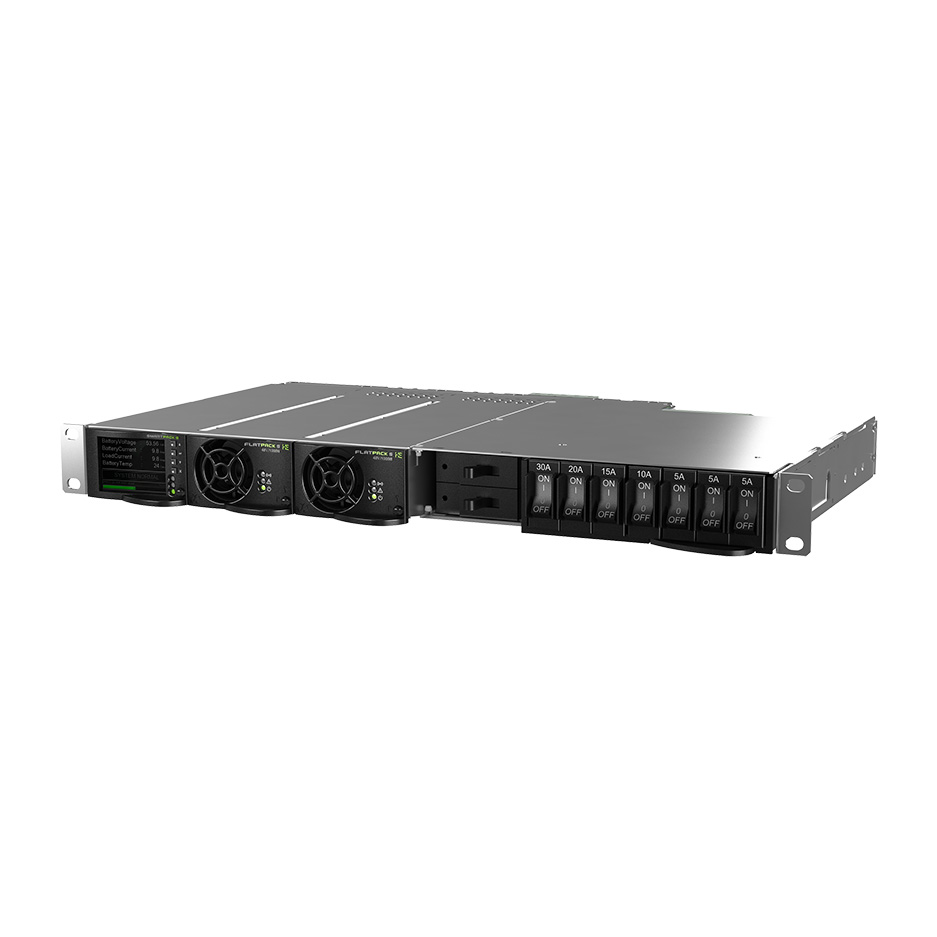

The Flatpack S 48V 1U system packs a complete -48 VDC power plant into a single rack unit with 262 mm depth, making it ideal for 19-inch cabinets where space is limited. The system is offered in two configurations: a 2-rectifier version (part number series CTOS0201.xxx) rated 40 A and a 3-rectifier version (CTOS0301.xxx) rated 100 A, both fed from a 100-250 VAC, 45-66 Hz single-phase supply.

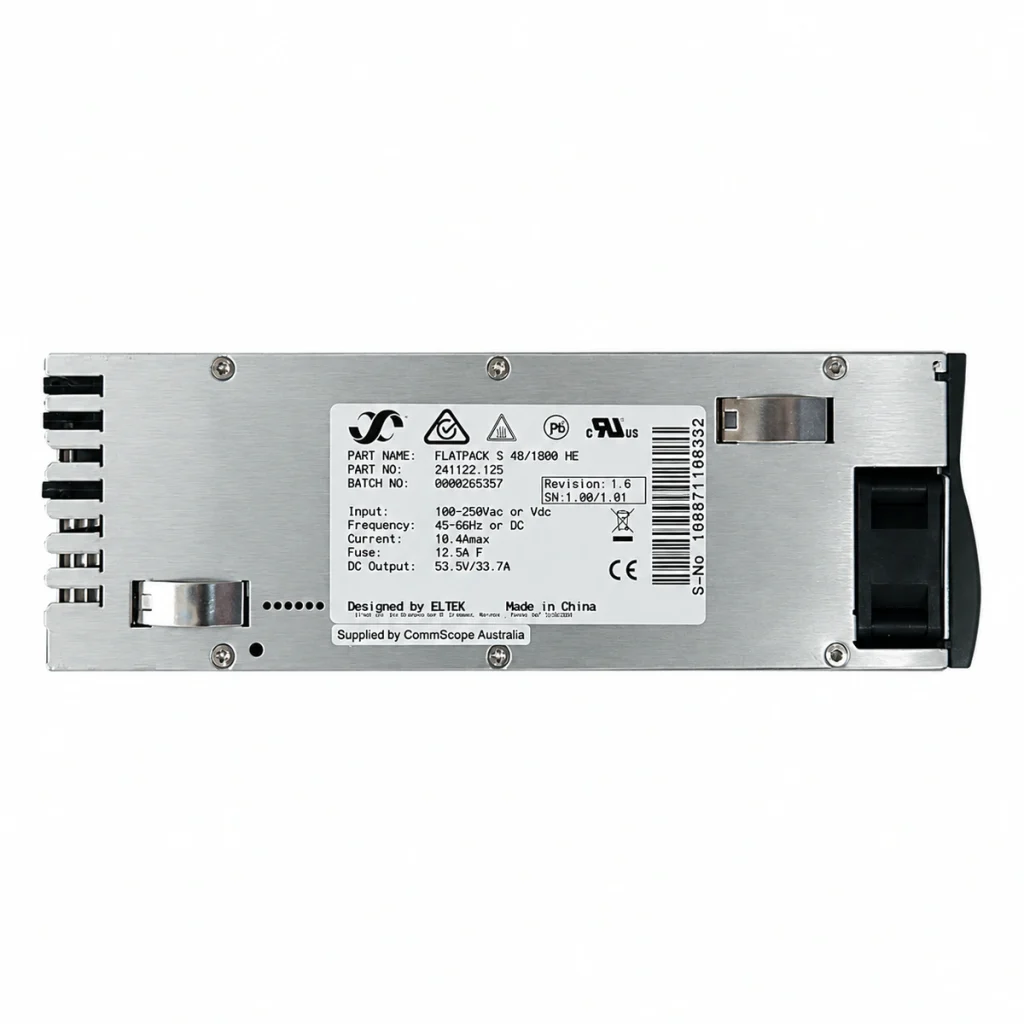

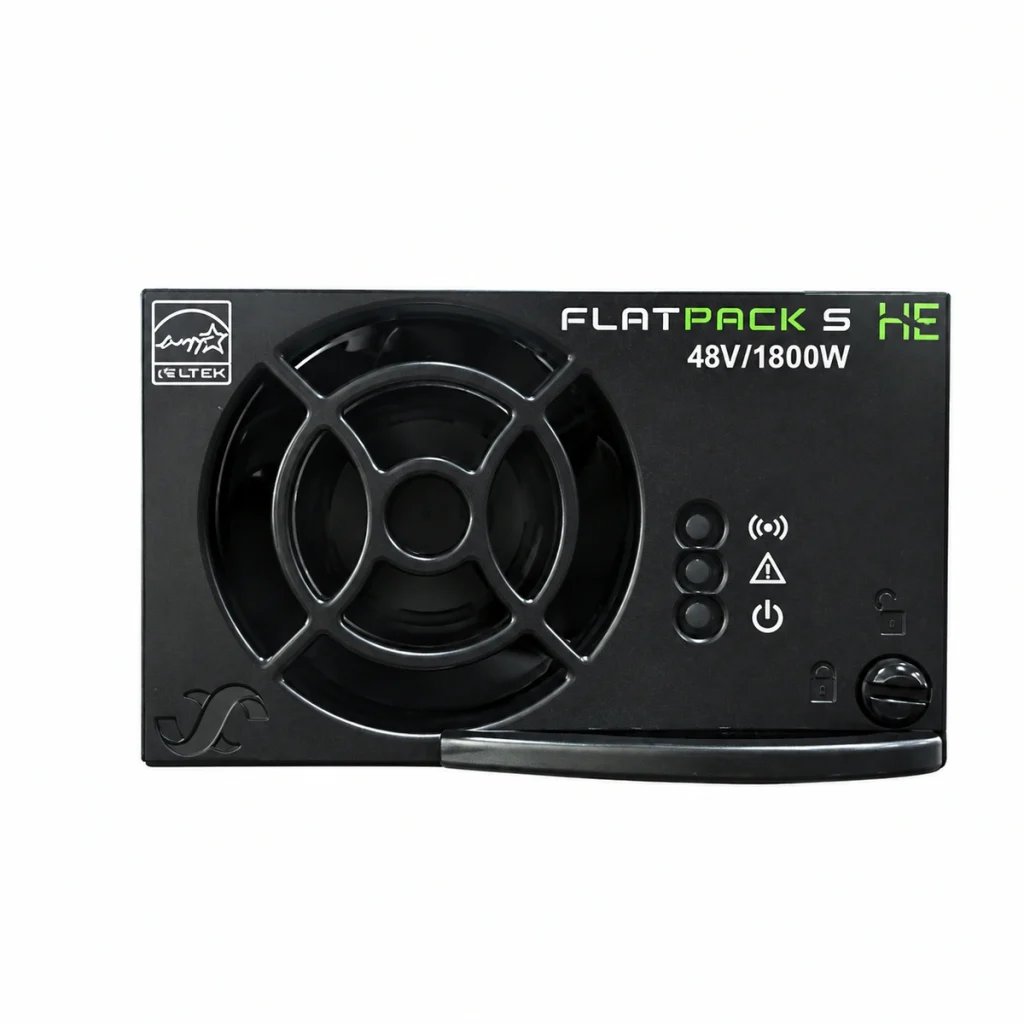

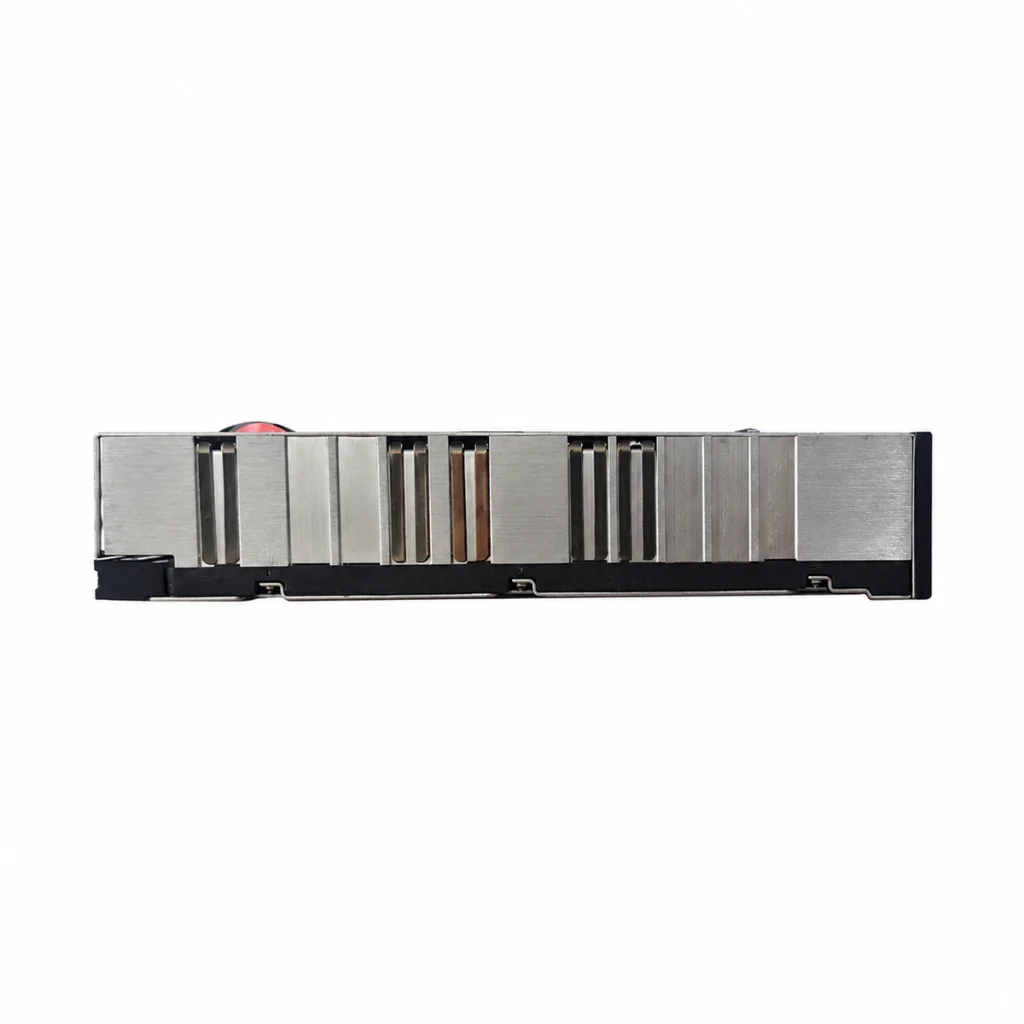

Each system accommodates hot-pluggable Flatpack S 48V rectifier modules, allowing capacity to be added or replaced without interrupting the load. A built-in Smartpack S controller provides local supervision and remote management through its Ethernet interface and six programmable I/O, covering alarms, battery management and site monitoring in one compact platform.
Battery care is handled by the standard low-voltage battery disconnect (LVBD) function with dedicated battery breakers – 2 x 40 A in the 2R version and 2 x 80 A in the 3R version – protecting batteries from deep discharge. With only 5.3 kg (2R) / 5.2 kg (3R) chassis weight excluding rectifiers, the system can be deployed in wall-mount cabinets, street cabinets and small equipment rooms.
Key Features
- Complete 48VDC power plant in one 19-inch 1U enclosure with 262 mm depth
- 40 A (2R, CTOS0201) and 100 A (3R, CTOS0301) system configurations
- Hot-pluggable Flatpack S rectifier slots for field expansion
- Smartpack S controller with Ethernet and 6 programmable I/O
- Standard low-voltage battery disconnect (LVBD) with 2 x 40 A / 2 x 80 A battery breakers
- Lightweight 5.2-5.3 kg chassis suitable for cabinets and wall-mount installations
Specifications
| Parameter | Value |
|---|---|
| Capacity | 40 A (2-rectifier version, CTOS0201) / 100 A (3-rectifier version, CTOS0301) at -48 VDC |
| Voltage | Input 100-250 VAC, 45-66 Hz; output -48 VDC |
| Dimensions | 19-inch rack-mount, 1U height, 262 mm depth |
| Weight | 5.3 kg (2R) / 5.2 kg (3R), excluding rectifiers |
| Protection | Low-voltage battery disconnect (LVBD) standard; battery breakers 2 x 40 A (2R version) / 2 x 80 A (3R version) |
| Other | Smartpack S controller with 6 programmable I/O and Ethernet; accepts hot-pluggable Flatpack S 48V rectifier modules |
Key Features of Flatpack S 48V
Flatpack S 48V is part of the 48 V DC power system family widely used in telecom and data applications. Systems of this class commonly combine rectifier modules, monitoring controllers and distribution units in rack or cabinet formats.
Typical Applications of Flatpack S 48V
DC power systems of this type are widely used in telecom equipment rooms, base station sites, data centers and industrial control environments that require reliable -48 V DC power.
Selecting Flatpack S 48V with BS Comtec
BS Comtec supplies DC power systems and rectifier modules from Vertiv, Huawei, ZTE, Eltek and other brands with global delivery. Tell us your load budget, battery requirements and installation space for a tailored proposal.
Frequently Asked Questions
How do I size Flatpack S 48V for my site?
Start from your steady-state and peak DC load, redundancy requirements (N+1 or 2N), battery backup time and expansion plans. BS Comtec can model these figures and propose a suitable configuration.
Can Flatpack S 48V work with my existing rectifiers or batteries?
It depends on voltage range, communication protocols and mechanical compatibility. Provide your current system details and BS Comtec will review interfaces and recommend a compatible combination.

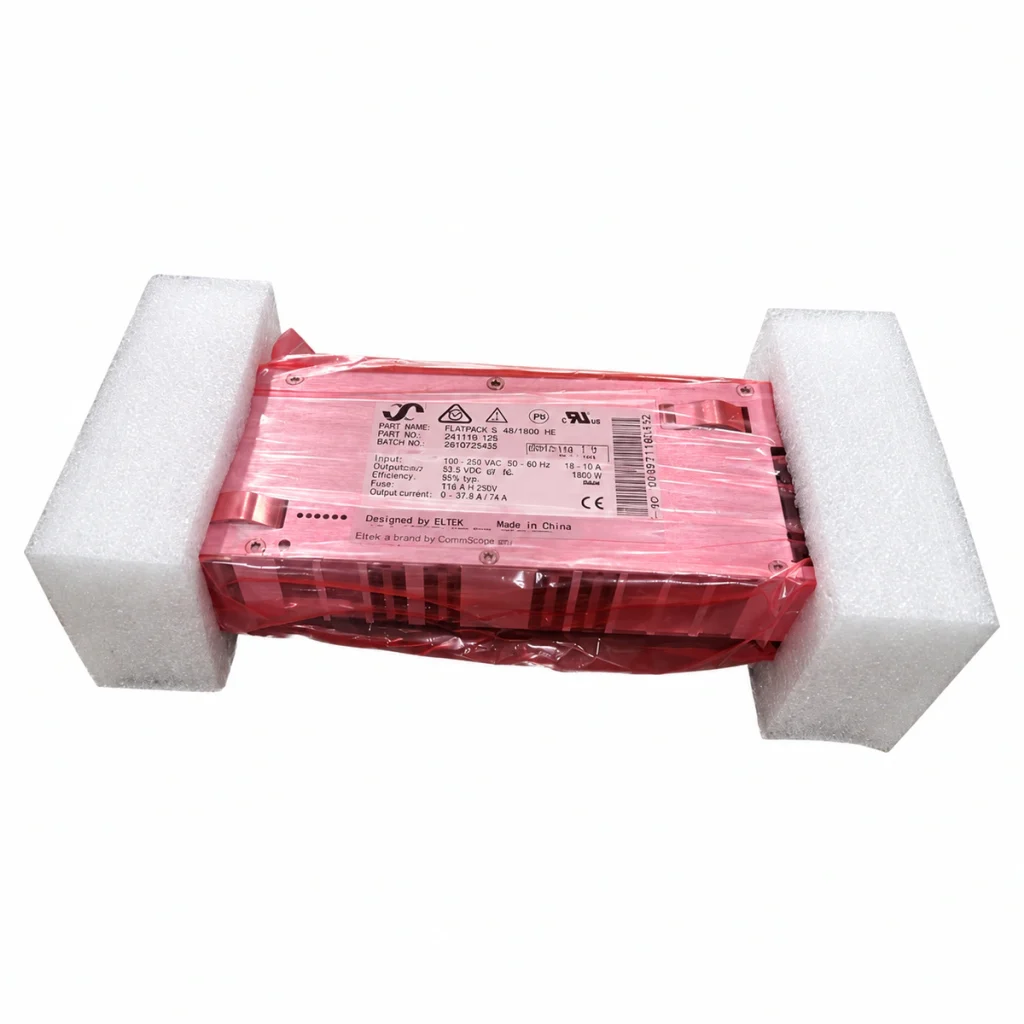

How is Flatpack S 48V shipped and delivered?
Systems and modules are packed for international freight, and lead times vary by model and destination. Contact BS Comtec for current availability, shipping options and delivery schedules.
What warranty and support come with Flatpack S 48V?
Warranty follows the manufacturer’s policy for the ordered configuration. BS Comtec assists with commissioning guidance, spare module supply and service coordination where required.
Where is Flatpack S 48V typically deployed?
It is commonly deployed in telecom central offices, outdoor cabinets, data centers and industrial facilities that rely on stable -48 V DC distribution.
What are the key specifications of Smartpack S?
Smartpack S key specs: . Full datasheet and test report available from BS Comtec on request.
Does BS Comtec supply Smartpack S?
Yes. BS Comtec supplies Smartpack S (Eltek line) from Singapore stock, MOQ from 1 piece; in-stock items dispatch within 24-48 hours with worldwide shipping.
Is there a cross-reference or equivalent for Smartpack S?
BS Comtec maintains a cross-reference chart covering Huawei, Vertiv (Emerson), Eltek, ZTE and Delta 48V modules. Contact us for the direct equivalent of Smartpack S.
