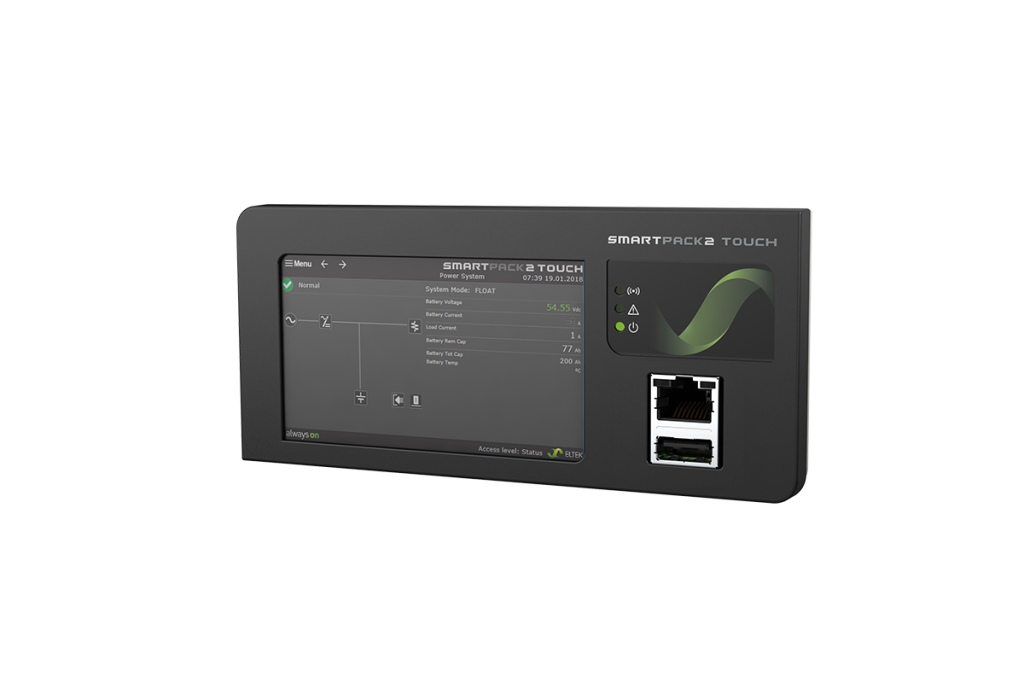

Eltek Smartpack2 Touch Power System Controller Touch (P/N 242100.500)

Product Overview

The Eltek Smartpack2 Touch is a Touch power system controller for DC power system supervision, battery management and remote site monitoring. It coordinates rectifiers, distribution and battery low-voltage disconnect, exposes Web/SNMP/Modbus interfaces for northbound integration, and logs alarms and battery health for unattended site operation.

BS Comtec supplies the Smartpack2 Touch as spare or upgrade for existing DC plants — request compatibility confirmation and a quote.

Key Features

• Communication: Ethernet / Web, SNMP, Modbus, dry contacts
• Display: Color touch screen
• Features: System supervision, battery management, alarm logging, remote access
• Special Function: Flatpack2 DC power systems
• Control: Rectifier coordination, BLVD/LLVD control, alarm logging

Specifications

Key Features of Smartpack2 Touch Power

Smartpack2 Touch Power is part of the 48 V DC power system family widely used in telecom and data applications. Systems of this class commonly combine rectifier modules, monitoring controllers and distribution units in rack or cabinet formats.

Typical Applications of Smartpack2 Touch Power

DC power systems of this type are widely used in telecom equipment rooms, base station sites, data centers and industrial control environments that require reliable -48 V DC power.

Selecting Smartpack2 Touch Power with BS Comtec

BS Comtec supplies DC power systems and rectifier modules from Vertiv, Huawei, ZTE, Eltek and other brands with global delivery. Tell us your load budget, battery requirements and installation space for a tailored proposal.

Engineering Notes: The Smartpack2 Touch as Plant Supervisor

The Smartpack2 Touch (Eltek part number 242100.500) is a controller, not a power system: it neither rectifies nor distributes power. Mounted in the power system front, its color touch screen gives site technicians a live view of system voltage, load current, rectifier status, battery state and active alarms — the interface most crews use during commissioning and battery discharge tests.

Working with Flatpack2 Rectifiers

In a Flatpack2-based plant, the Smartpack2 Touch coordinates the rectifier modules over the system CAN bus: it broadcasts voltage and current-limit setpoints, collects per-module status and keeps load sharing balanced across modules. That digital coordination is what enables module-level reporting and coordinated battery management, rather than each rectifier simply floating on its own.

Northbound Integration and Remote NOC Access

Toward the site’s upper layer, the controller exposes Ethernet with a web interface and SNMP, alongside Modbus and dry-contact signaling where legacy SCADA or simple external indicators are involved. Typical NOC setups poll the controller over SNMP, receive alarm traps, or reach the web GUI through a secure remote access path — one IP address representing the whole DC plant, which is exactly what distributed site portfolios need.

Alarm Management in Daily Operation

The controller logs system, rectifier and battery alarms with timestamps, which simplifies troubleshooting after the fact. Common practice: classify power alarms by urgency (AC loss and battery-related events first), map them into the NOC escalation workflow, and use the log during site visits to confirm root cause rather than guess.

Smartpack2 Touch vs. Smartpack S

Do not confuse the Smartpack2 Touch with the smaller Smartpack S controller used with Flatpack S systems (the 2042-series rectifier family). They are different controller generations with different display, integration and system-size capabilities. When ordering spares or planning an upgrade, verify which controller your plant actually runs — BS Comtec supplies both lines and cross-checks your existing system before you order.

Frequently Asked Questions

How do I size Smartpack2 Touch Power for my site?

Start from your steady-state and peak DC load, redundancy requirements (N+1 or 2N), battery backup time and expansion plans. BS Comtec can model these figures and propose a suitable configuration.

Can Smartpack2 Touch Power work with my existing rectifiers or batteries?

It depends on voltage range, communication protocols and mechanical compatibility. Provide your current system details and BS Comtec will review interfaces and recommend a compatible combination.

How is Smartpack2 Touch Power shipped and delivered?

Systems and modules are packed for international freight, and lead times vary by model and destination. Contact BS Comtec for current availability, shipping options and delivery schedules.

What warranty and support come with Smartpack2 Touch Power?

Warranty follows the manufacturer’s policy for the ordered configuration. BS Comtec assists with commissioning guidance, spare module supply and service coordination where required.

Where is Smartpack2 Touch Power typically deployed?

It is commonly deployed in telecom central offices, outdoor cabinets, data centers and industrial facilities that rely on stable -48 V DC distribution.

What are the key specifications of Smartpack2 Touch?

Smartpack2 Touch key specs: . Full datasheet and test report available from BS Comtec on request.

Does BS Comtec supply Smartpack2 Touch?

Yes. BS Comtec supplies Smartpack2 Touch (Eltek line) from Singapore stock, MOQ from 1 piece; in-stock items dispatch within 24-48 hours with worldwide shipping.

Is there a cross-reference or equivalent for Smartpack2 Touch?

BS Comtec maintains a cross-reference chart covering Huawei, Vertiv (Emerson), Eltek, ZTE and Delta 48V modules. Contact us for the direct equivalent of Smartpack2 Touch.

Is the Smartpack2 Touch a power supply or a controller?

It is a controller (Eltek P/N 242100.500). It supervises rectifier modules, DC distribution and batteries in Flatpack2-based systems but delivers no power itself. If your site needs a complete power system rather than a controller, BS Comtec will size the frame and rectifier modules around it.

Can an older Smartpack S system be upgraded to Smartpack2 Touch?

Migrating between controller generations depends on the power shelf, rectifier family and wiring in your plant, and is not a like-for-like swap in every system. Send BS Comtec your shelf model, rectifier type and existing controller details, and we will confirm compatibility and the practical upgrade path.
