Product Overview

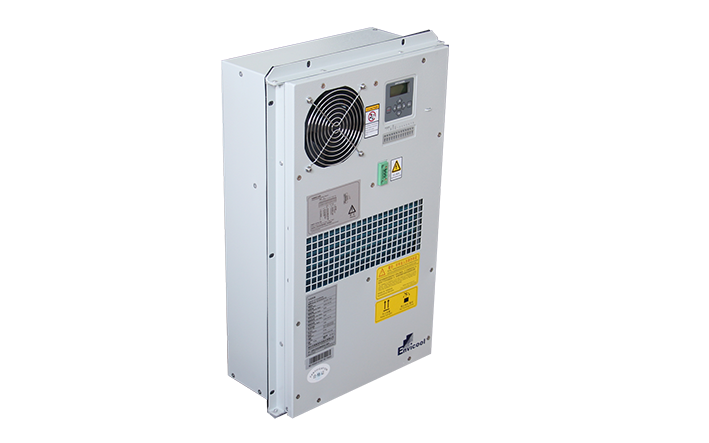

The EC series cools outdoor electronic enclosures where dust, rain and temperature extremes are the norm. The documented model ladder runs from EC05HDNC1B (520 W cooling, 545 x 315 x 170 mm, 16.5 kg) up to EC50HDNC1C (4750 W, 1300 x 500 x 300 mm), all in a door-mounted format that keeps the cabinet interior layout untouched.
Units are rated IP55 and operate from -40 to +55 degC, covering outdoor telecom cabinets, power cabinets and similar enclosures. Control is via RS485 Modbus with automatic restart after power failure, so the cooling recovers without a site visit after grid events.
- Enclosure cooling capacities from 520 W to 4,750 W
- Model range EC05HDNC1B to EC50HDNC1C
- Compact door-mounted design (545 x 315 x 170 mm up to 1300 x 500 x 300 mm)
- IP55 protection for outdoor cabinets
- Operating range -40 to +55 degC
- RS485 Modbus communication and automatic restart after power failure
| Cooling Capacity | 520-4750 W |
| Models | EC05HDNC1B – EC50HDNC1C |
| Dimensions | EC05HDNC1B: 545 x 315 x 170 mm, 16.5 kg; EC50HDNC1C: 1300 x 500 x 300 mm |
| Protection | IP55 |
| Operating Range | -40 to +55 degC |
| Mounting | Door-mounted |
| Communication | RS485 Modbus |
| Feature | Automatic restart after power failure |
