Product Overview

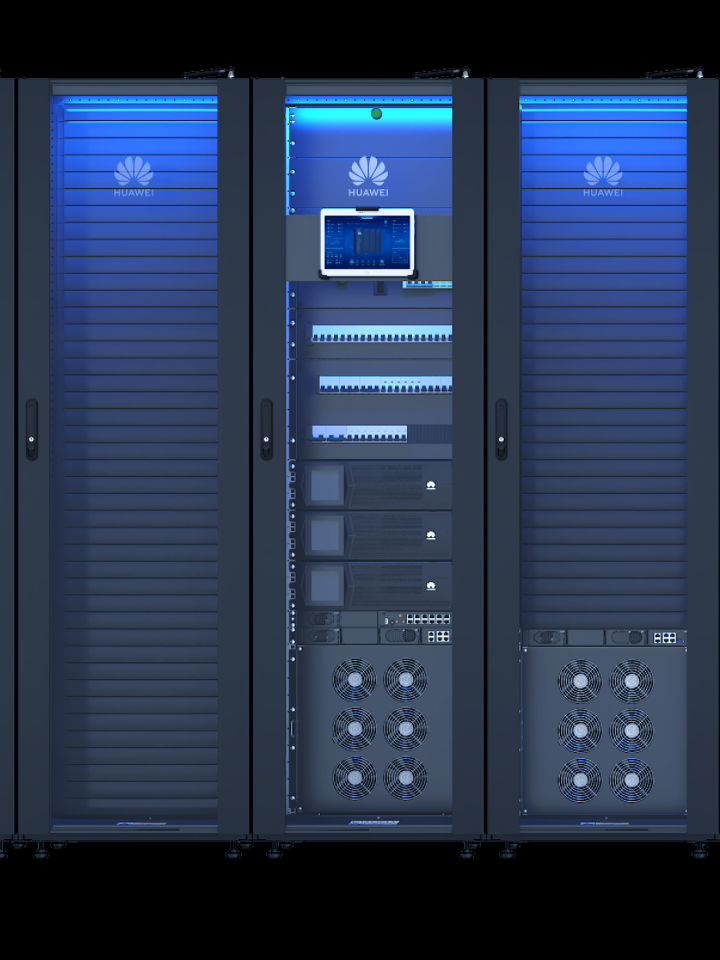

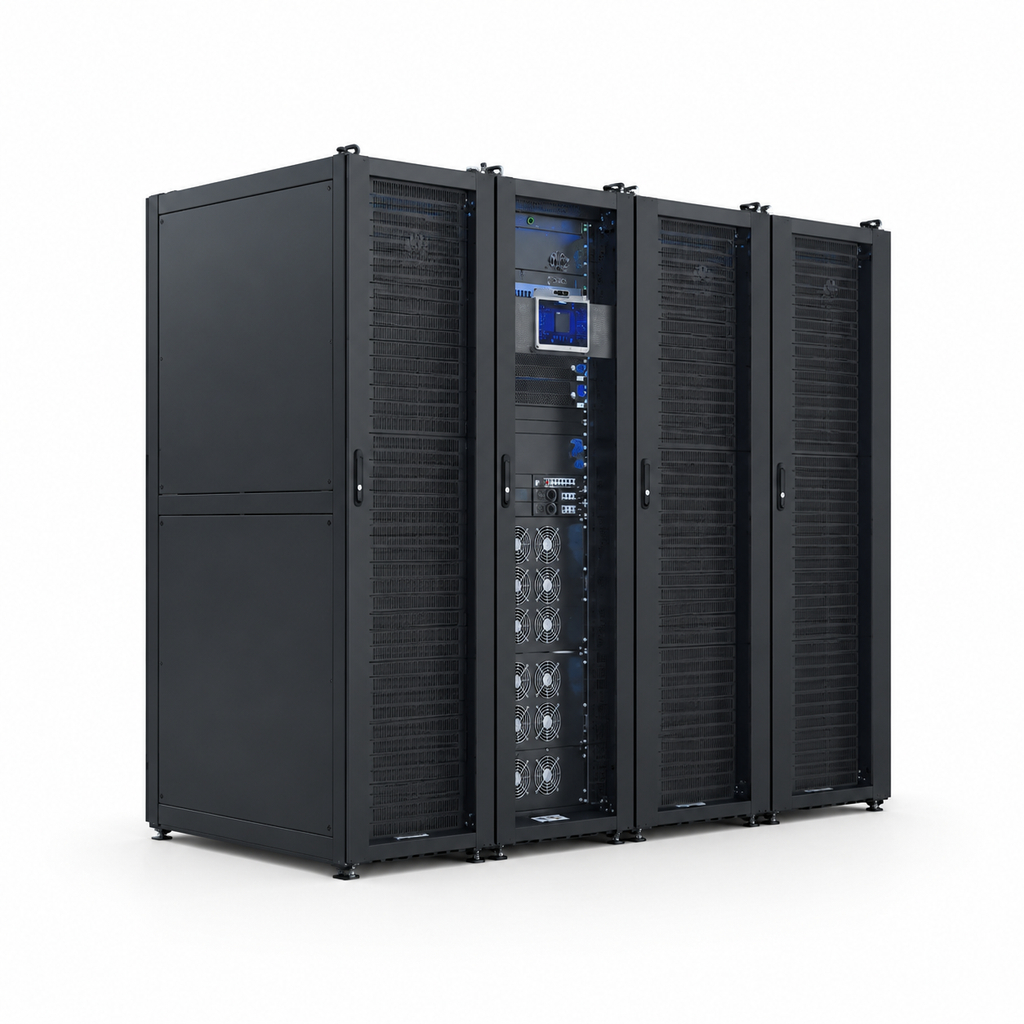

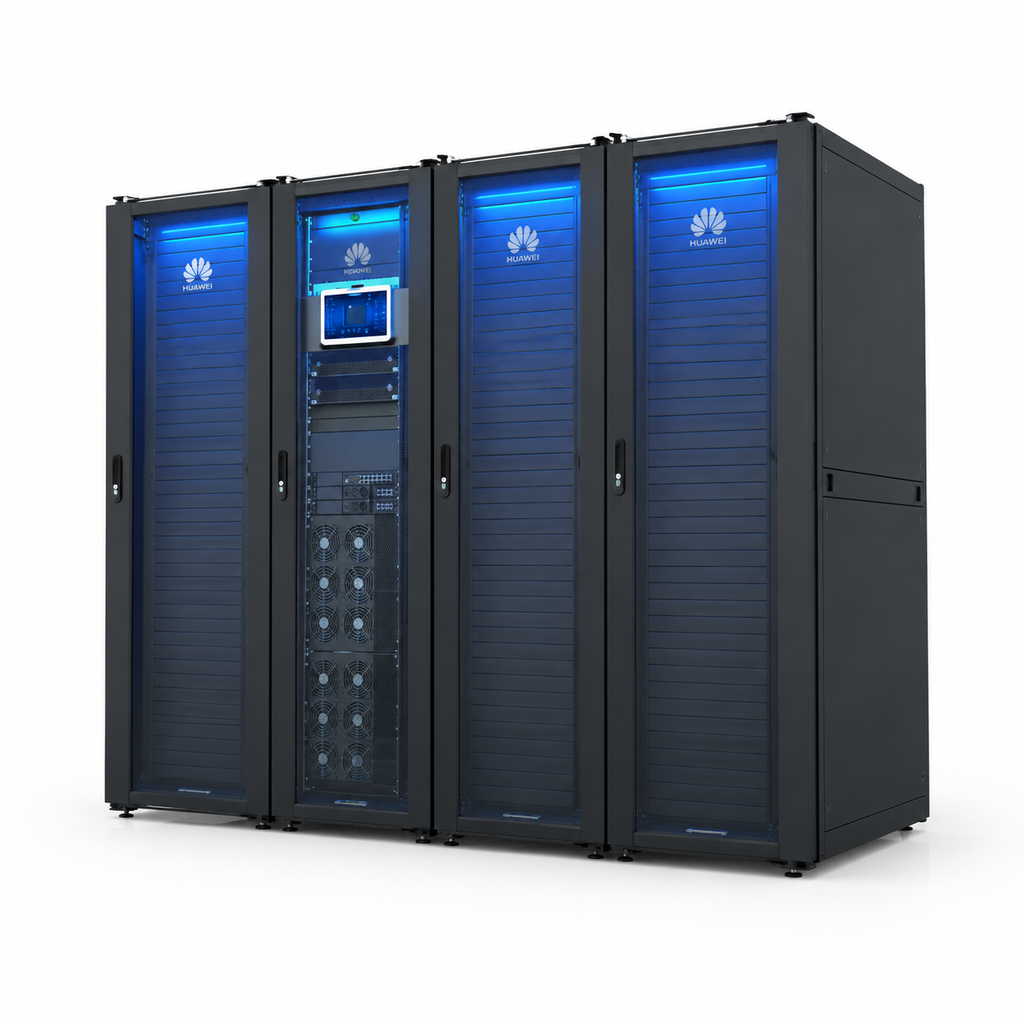

FusionModule800 integrates cabinets, cooling, power distribution, monitoring and cabling into a factory-prefabricated module that scales from 1 to 15 cabinets and supports up to 40 kW of IT load per module. It brings container-like predictability to traditional indoor data center rooms.
The module uses cold and hot aisle containment to separate airflow, and cabinet doors open automatically in an emergency to dissipate heat if cooling fails, protecting IT equipment. The operating envelope of the T1 version spans -20 to +45 degC, with T3 (-10 to +55 degC) and LT (-40 to +45 degC) variants for harsher climates.
Power input is 380 VAC, and the module footprint ranges from 600 mm to 9000 mm long x 1350 mm wide x 2000 mm high depending on the number of cabinets, allowing capacity to grow cabinet by cabinet as demand increases.
Key Features
- 1-15 cabinets per module with up to 40 kW IT load
- Cold and hot aisle containment for airflow separation
- Auto-opening doors for emergency heat dissipation
- T1 operation -20 to +45 degC; T3 and LT variants for wider climates
- 380 VAC power input
- Modular footprint from 600 to 9000 mm length with 1350 x 2000 mm section
Specifications
| Parameter | Value |
|---|---|
| Capacity | 1-15 cabinets; up to 40 kW IT load |
| Voltage | 380 VAC |
| Dimensions | (600-9000) x 1350 x 2000 mm depending on cabinet count |
| Operating Temperature | -20 to +45 degC (T1 version); T3 -10 to +55 degC; LT -40 to +45 degC |
| Other | Cold/hot aisle containment; auto-opening emergency doors; prefabricated modular integration |
Key Features of FusionModule800 Modular Data
FusionModule800 Modular Data belongs to the integrated cabinet family that combines racks, power, cooling and monitoring in a single enclosure. Solutions of this class are commonly deployed as micro data centers for edge and branch locations.
Typical Applications of FusionModule800 Modular Data
Integrated cabinets are widely used for edge data centers, branch offices, factory floors and remote sites where a full server room is impractical.
Selecting FusionModule800 Modular Data with BS Comtec
BS Comtec supplies integrated cabinet solutions from Vertiv, Huawei and other brands with global delivery. Share your IT load, environment and runtime needs for a complete configuration proposal.
Frequently Asked Questions
How do I configure FusionModule800 Modular Data for my site?
Start from IT load, available space, environmental conditions and required backup time. BS Comtec will propose a cabinet configuration covering power, cooling and monitoring.
Can FusionModule800 Modular Data be customized to our requirements?
Many aspects such as rack units, cooling capacity and power distribution can be adapted. Discuss your specifications with BS Comtec to review available options.
How is FusionModule800 Modular Data shipped?
Integrated cabinets ship with export-standard packing, often in dedicated crates. Delivery schedules depend on configuration and destination — request a quote for details.
What warranty and support come with FusionModule800 Modular Data?
Warranty follows the manufacturers’ policies for the integrated components. BS Comtec coordinates documentation, spares and service across the delivered scope.
Where is FusionModule800 Modular Data typically deployed?
It is typically deployed at edge sites, branch offices and industrial locations needing a compact, pre-integrated data center footprint.
