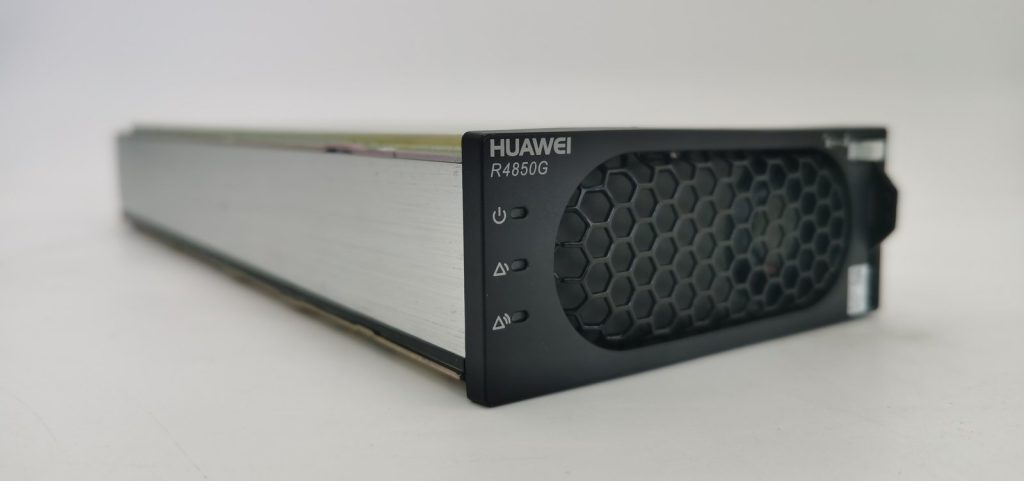

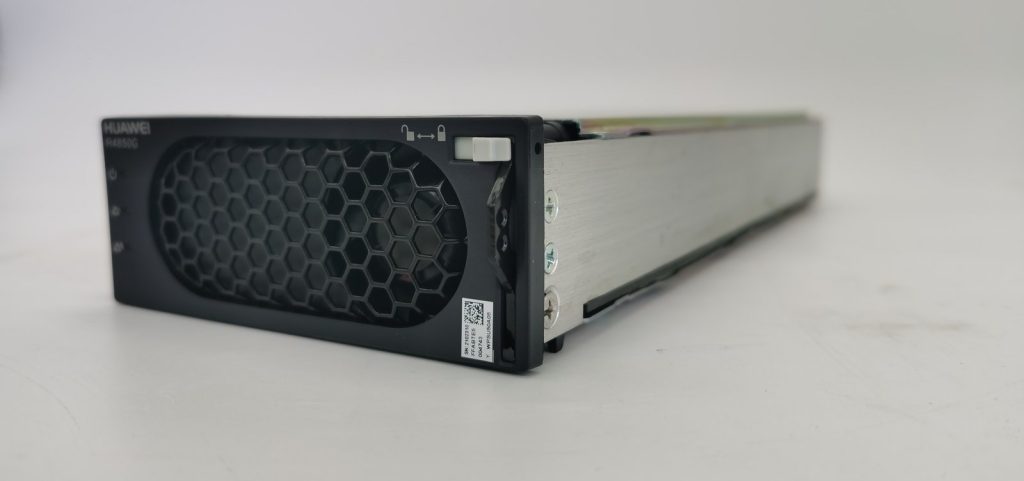

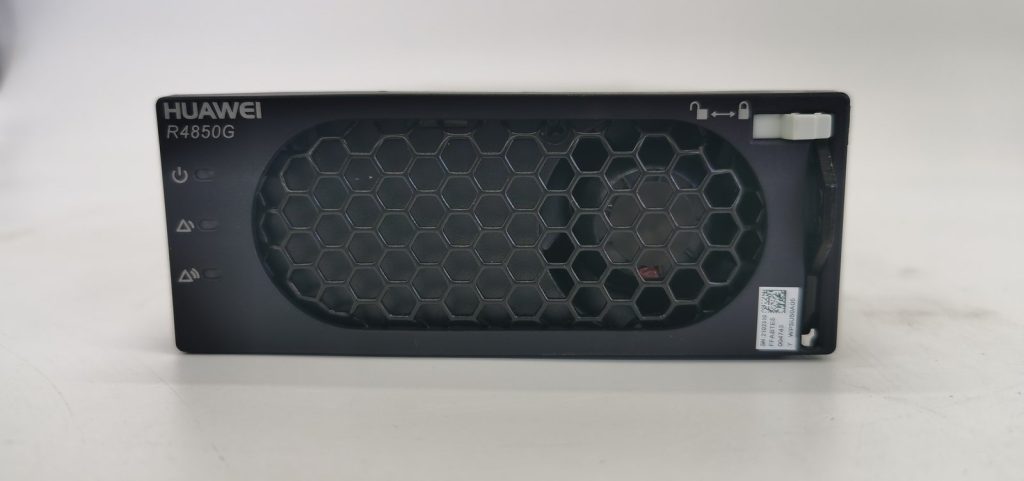

Product Overview
The R4850G2 delivers a maximum output power of 3000 W at 176-290 VAC input, providing a regulated 42-58 VDC output with a 53.5 V default setting for -48 VDC telecom equipment. The module draws up to 17 A from an 85-300 VAC wide-range input across 45-66 Hz, with input power factor >= 0.99 and THD <= 5% for clean grid interaction.
Peak efficiency is specified at >= 96%, and the module operates from -40 to +75 degC, making it suitable for outdoor cabinets and unconditioned equipment rooms. The compact 40.8 x 105 x 281 mm module weighs no more than 2 kg, matching standard Huawei rectifier slots.

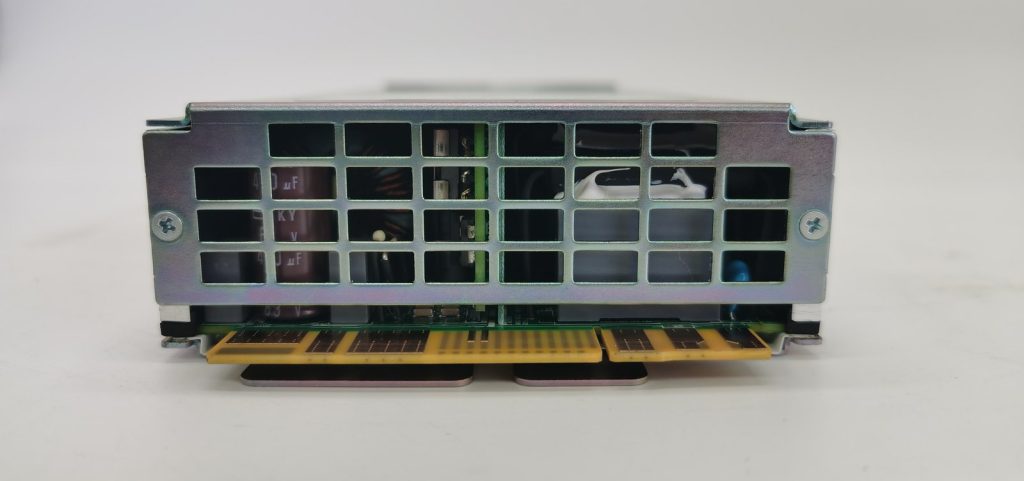

CAN bus communication reports status and alarms to the Huawei system controller, and the hot-swappable design allows replacement or capacity growth without interrupting the load. The module is certified to TUV, CE and UL/CB requirements and is RoHS compliant.
Key Features
- 3000 W maximum output at 176-290 VAC input
- Wide 85-300 VAC input window (<=17 A, 45-66 Hz)
- Adjustable 42-58 VDC output with 53.5 V default set point
- >= 96% peak efficiency with PF >= 0.99 and THD <= 5%
- Operation from -40 to +75 degC for harsh environments
- CAN bus communication and hot-swappable design
Specifications
| Parameter | Value |
|---|---|
| Capacity | 3000 W max output (176-290 VAC input); 50 A rated class |
| Voltage | Input 85-300 VAC, <=17 A, 45-66 Hz; output 42-58 VDC (default 53.5 V) |
| Dimensions | 40.8 x 105 x 281 mm |
| Weight | <= 2 kg |
| Operating Temperature | -40 to +75 degC |
| Efficiency | >= 96% peak |

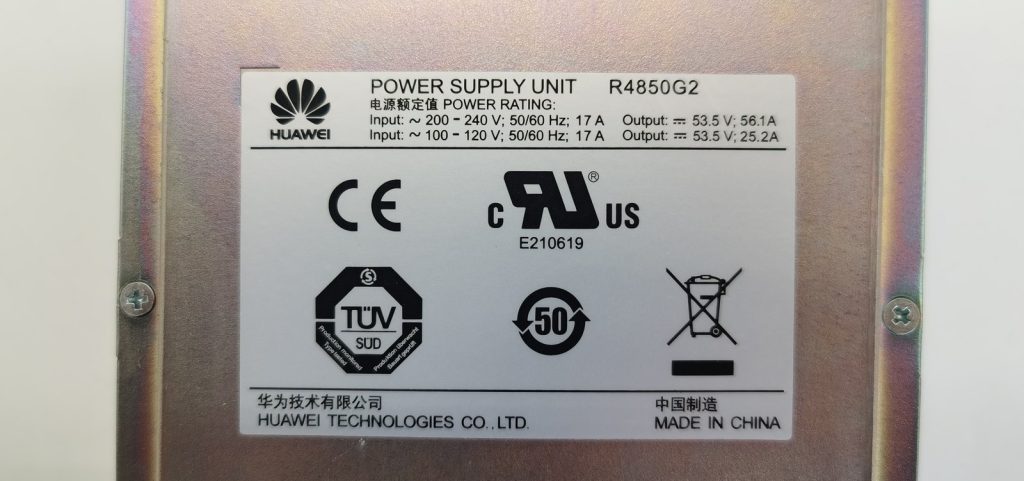

| Protection | TUV, CE and UL/CB certified; RoHS compliant; PF >= 0.99 and THD <= 5% |
| Other | CAN bus communication; hot-swappable module for Huawei power systems |
Key Features of R4850G2 3000W 48V
R4850G2 3000W 48V belongs to the high-efficiency rectifier module family that converts AC mains into a stable 48 V DC output. Modules of this class commonly support hot-swap installation, wide AC input windows and monitoring via system controllers.
Typical Applications of R4850G2 3000W 48V
Rectifier modules of this type are widely used in telecom power systems, data center DC plants and industrial power cabinets, usually alongside batteries for backup.
Selecting R4850G2 3000W 48V with BS Comtec
BS Comtec supplies rectifier modules from Eltek, Huawei, Vertiv and other brands with global delivery. Tell us your DC load and shelf or system type, and we will match compatible modules.
Frequently Asked Questions
How do I select R4850G2 3000W 48V for my power system?
Check output voltage, module power rating, efficiency class and compatibility with your existing rectifier shelf or controller. BS Comtec can verify fitment and propose the right quantity.
Is R4850G2 3000W 48V compatible with my existing system?
Compatibility depends on the rectifier shelf, controller and communication protocol. Send your current system model to BS Comtec and we will confirm which modules fit.
How is R4850G2 3000W 48V delivered?
Modules are packed in anti-static, export-standard cartons and shipped worldwide. Delivery time depends on stock and destination — contact BS Comtec for current lead times.
What warranty applies to R4850G2 3000W 48V?
Warranty follows the manufacturer’s policy for the specific module. BS Comtec supports testing guidance, replacement requests and RMA coordination per the terms of your order.
Where is R4850G2 3000W 48V typically used?
It is typically used in telecom base stations, central offices, data center power rooms and industrial sites requiring reliable 48 V DC conversion.
