Product Overview
The Huawei TP48300B is an indoor cabinet-type DC power system that supplies -48 VDC telecommunication equipment in medium-sized equipment rooms and base station shelters. Built from 50 A rectifier modules, the system reaches a maximum output of 300 A, providing a step between embedded systems and the larger 600 A TP48600B plant.

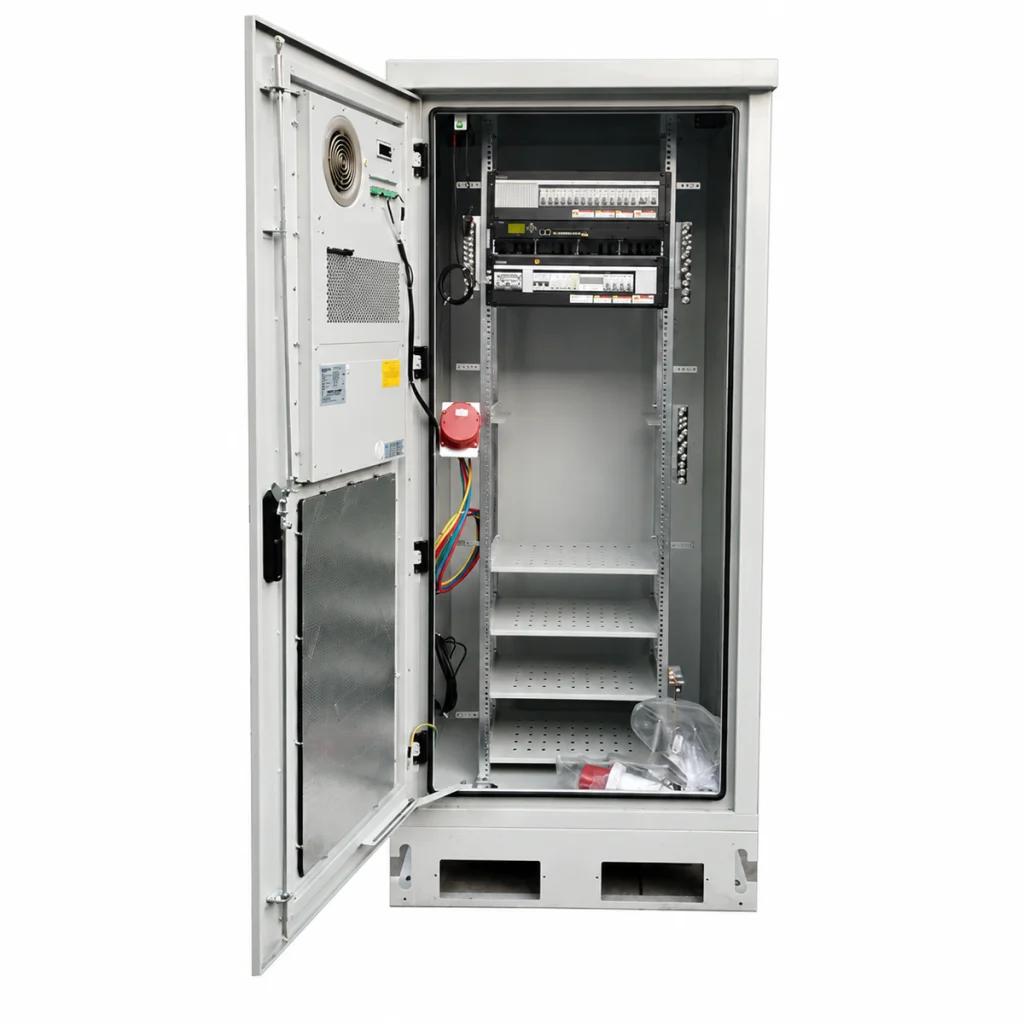

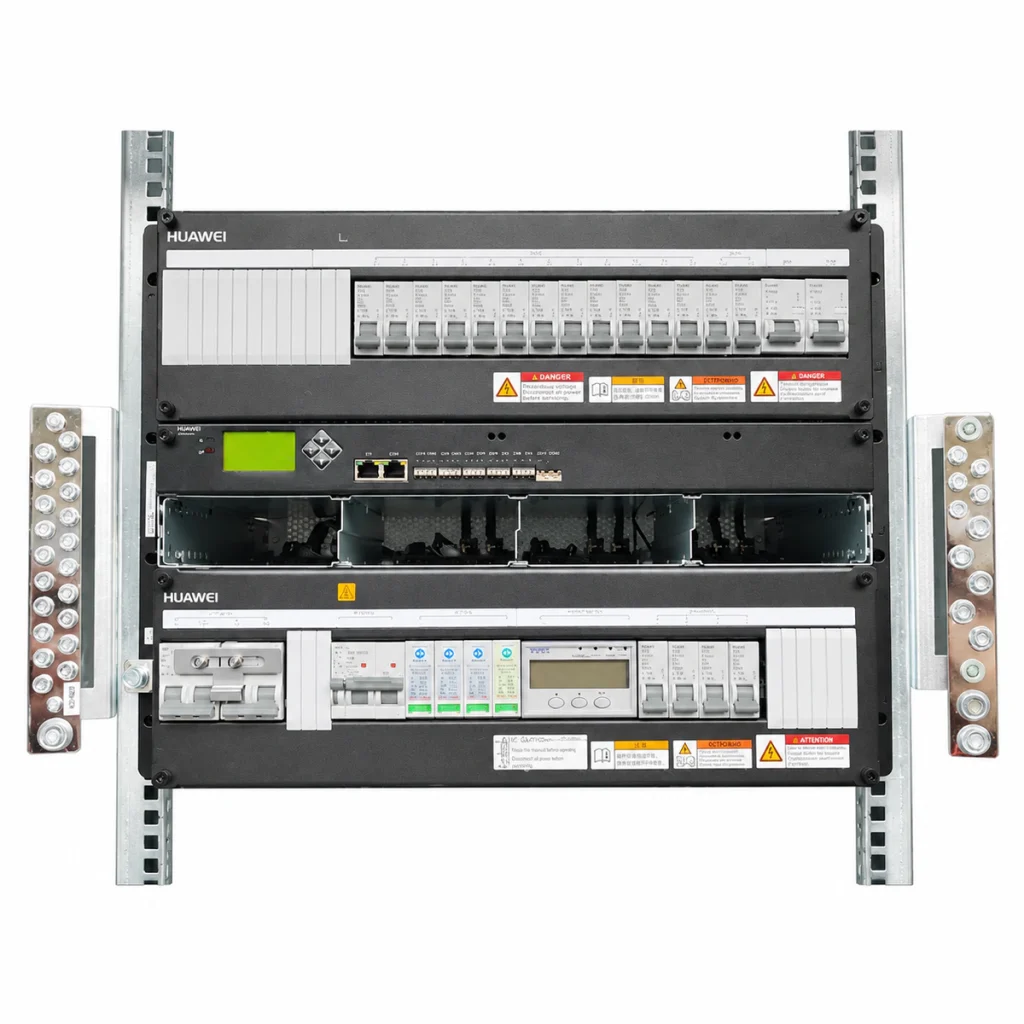

The cabinet integrates power distribution, a PMU monitoring unit, rectifier slots and dedicated battery space, allowing operators to combine rectification, distribution and backup energy in one enclosure. As part of Huawei’s TP48400 series cabinet family, it shares platform components and monitoring architecture with other TP48x00B systems.
For operators and enterprises expanding indoor sites, the TP48300B offers a scalable path: rectifiers can be added as load grows, while the PMU provides remote monitoring of the power system and connected objects. The product page is published on Huawei’s official support portal, and detailed parameters are defined per sub-model configuration.
Key Features
- Indoor cabinet-type -48 VDC power system, up to 300 A output
- Built with 50 A rectifier modules (R4850G2-class, up to 96% efficiency)
- Integrated distribution, PMU monitoring unit and battery compartment
- Part of Huawei TP48400 series cabinet family with shared architecture
- Scalable configuration as site load grows
- Positioned below the 600 A TP48600B for medium sites
Specifications
| Parameter | Value |
|---|---|
| Capacity | Up to 300 A maximum output at -48 VDC (50 A rectifier modules) |
| Voltage | -48 VDC output; AC input per sub-model configuration |
| Protection | PMU-based monitoring of system and connected objects (per Huawei TP48400 series documentation) |
| Other | Cabinet configurations combine rectifier space, distribution and battery space; family documented in Huawei TP48300B/TP48600B user manual |
Key Features of TP48300B Indoor Cabinet
TP48300B Indoor Cabinet is part of the 48 V DC power system family widely used in telecom and data applications. Systems of this class commonly combine rectifier modules, monitoring controllers and distribution units in rack or cabinet formats.
Typical Applications of TP48300B Indoor Cabinet
DC power systems of this type are widely used in telecom equipment rooms, base station sites, data centers and industrial control environments that require reliable -48 V DC power.
Selecting TP48300B Indoor Cabinet with BS Comtec
BS Comtec supplies DC power systems and rectifier modules from Vertiv, Huawei, ZTE, Eltek and other brands with global delivery. Tell us your load budget, battery requirements and installation space for a tailored proposal.
Frequently Asked Questions
How do I size TP48300B Indoor Cabinet for my site?
Start from your steady-state and peak DC load, redundancy requirements (N+1 or 2N), battery backup time and expansion plans. BS Comtec can model these figures and propose a suitable configuration.
Can TP48300B Indoor Cabinet work with my existing rectifiers or batteries?
It depends on voltage range, communication protocols and mechanical compatibility. Provide your current system details and BS Comtec will review interfaces and recommend a compatible combination.
How is TP48300B Indoor Cabinet shipped and delivered?
Systems and modules are packed for international freight, and lead times vary by model and destination. Contact BS Comtec for current availability, shipping options and delivery schedules.
What warranty and support come with TP48300B Indoor Cabinet?
Warranty follows the manufacturer’s policy for the ordered configuration. BS Comtec assists with commissioning guidance, spare module supply and service coordination where required.
Where is TP48300B Indoor Cabinet typically deployed?
It is commonly deployed in telecom central offices, outdoor cabinets, data centers and industrial facilities that rely on stable -48 V DC distribution.
