Product Overview
MSA Series vending machine air conditioner is a compact cooling unit designed specifically for the automatic vending machine industry, keeping beverage and product temperatures stable inside vending cabinets in outdoor and indoor locations. Covering 600-1200 W cooling capacity on 220V 50Hz input with -40 to +55 °C operation and R134a refrigerant, it is matched to vending cabinets from 800-1300 L with a small footprint and quiet operation.
Key Features
- Vending-industry design: compact footprint matched to vending machine cabinets (800-1300 L)
- 600-1200 W range: four models covering standard vending cabinet sizes
- Wide temperature range: -40 °C to +55 °C operation
- Eco refrigerant: R134a
- Quiet operation: suitable for indoor placement
- Optional RS485: status reporting for remote monitoring (selected models)
Model Range & Specifications
| Model | Suitable Volume (L) | Cooling Capacity (W) | Power (W) | Noise dB(A) | Dimensions H×W×D (mm) |
|---|---|---|---|---|---|
| MSA-01 | 800-1000 | 600 | 330 | 55 | 380×400×400 |
| MSA-02 | 800-1000 | 700 | 350 | 55 | 380×400×400 |
| MSA-03 | 1000-1200 | 1000 | 550 | 56 | 360×500×400 |
| MSA-04 | 1000-1300 | 1200 | 570 | 56 | 375×500×400 |
All models use R134a refrigerant with air flow circulation matched to the cabinet volume; custom sizes and styles are available for OEM orders.
How to Select the Right Model
Match the model to the vending cabinet volume and product temperature requirement: MSA-01/MSA-02 fit standard 800-1000 L cabinets, while MSA-03 and MSA-04 serve 1000-1300 L cabinets and higher-load product mixes such as chilled beverages. For outdoor vending machines in hot climates, rate the unit toward the upper end of the volume range to cover solar radiation gain on the cabinet surface.
Applications
- Automatic vending machines for beverages and chilled products
- Outdoor vending cabinets and smart retail terminals
- Combination vending and advertising machines

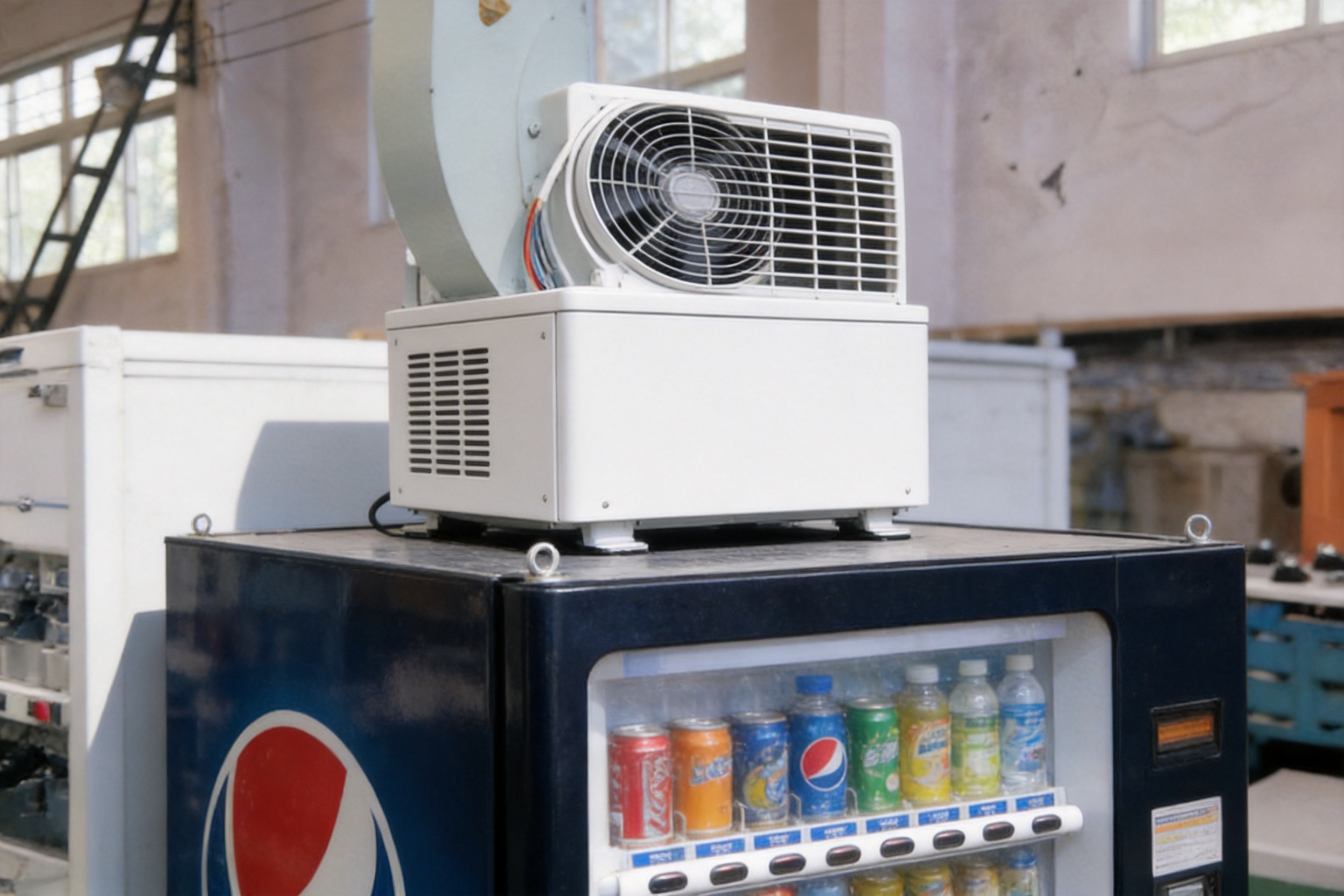

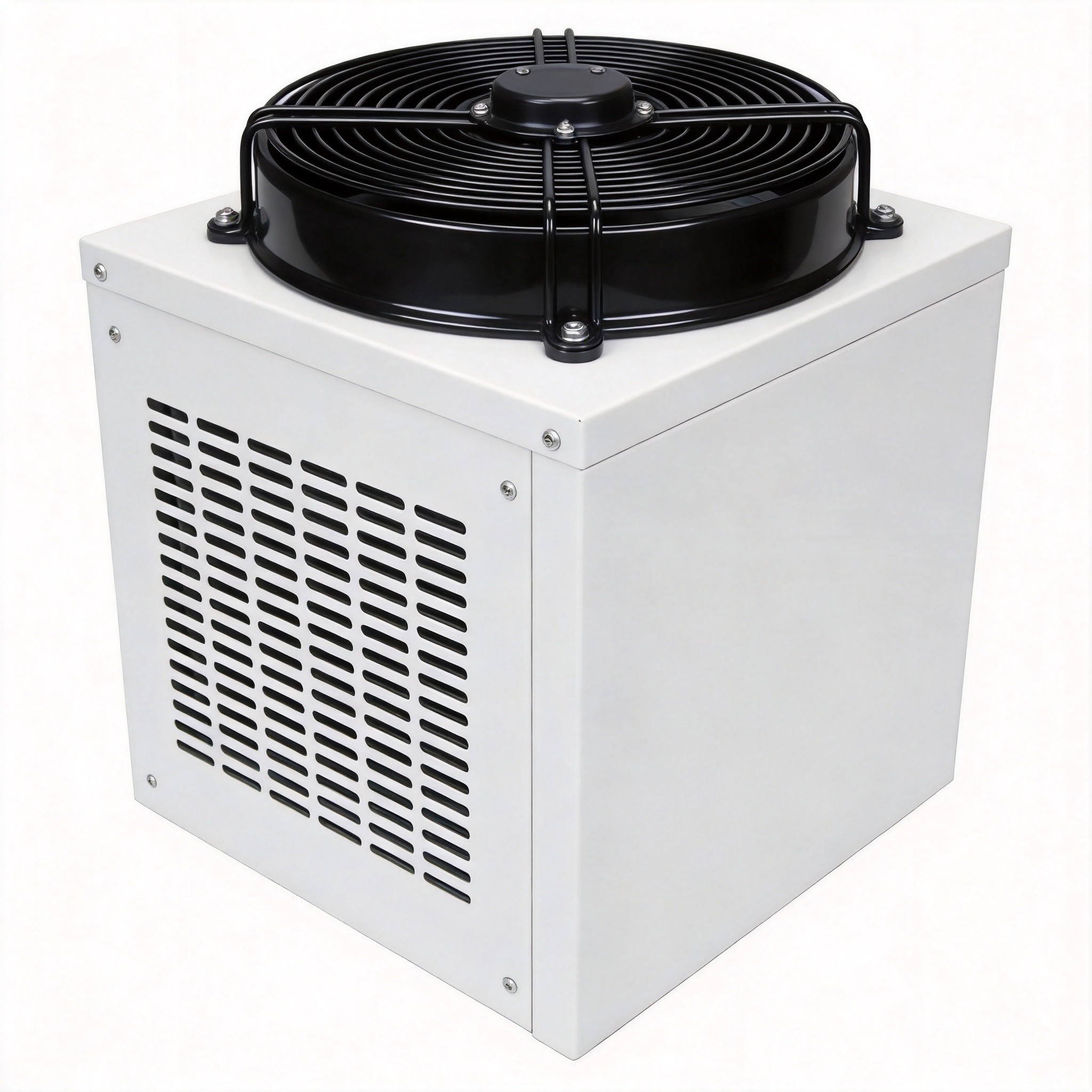

Product Views
Why Vending Machines Need Dedicated Temperature Control
Vending machines operate unattended for years, and their electronics sit inside the same cabinet as the products being sold. In summer, heat builds up inside the cabinet; controller electronics drift and chilled products warm above the setpoint. Without dedicated cooling, vending machine owners see rising service calls and falling product quality. A dedicated vending machine air conditioner removes cabinet heat with a compact unit matched to the machine volume, keeping products cold and electronics stable across the machine service life, with the R134a refrigerant circuit sized exactly for the 800-1300 L cabinet class.
Installation & Maintenance Notes
The MSA Series mounts into the vending cabinet through a standard opening; confirm the cooling compartment cutout matches the 380x400x400 mm (MSA-01/02) or 360-375x500x400 mm (MSA-03/04) outline before ordering. Keep the condenser grille clear for airflow, and clean the intake filter on a quarterly cycle in dusty locations. For outdoor vending machines, orient the unit away from direct afternoon sun where possible and check door seals annually to hold the cabinet setpoint through summer peaks.
Q: Can the MSA Series be used in a combined vending and advertising machine?
A: Yes. The MSA Series is designed for the vending machine industry and fits combined vending and advertising cabinets; for display-heavy machines with higher screen heat, the MGA Series billboard air conditioner covers the larger capacity range up to 5000 W.
Frequently Asked Questions
Q: Which MSA model fits a 1000 L beverage vending machine?
A: A 1000 L cabinet with chilled beverage load typically uses the MSA-03 (1000 W). For outdoor placement with strong solar gain, the MSA-04 (1200 W) adds margin. Share your cabinet volume and product temperature spec with BScomtec for a sized recommendation.
Related products: see also the OEM Billboard Air Conditioner 400-5000W and the OEM MEA Series AC Cabinet Air Conditioner 400-4000W.
