Product Overview

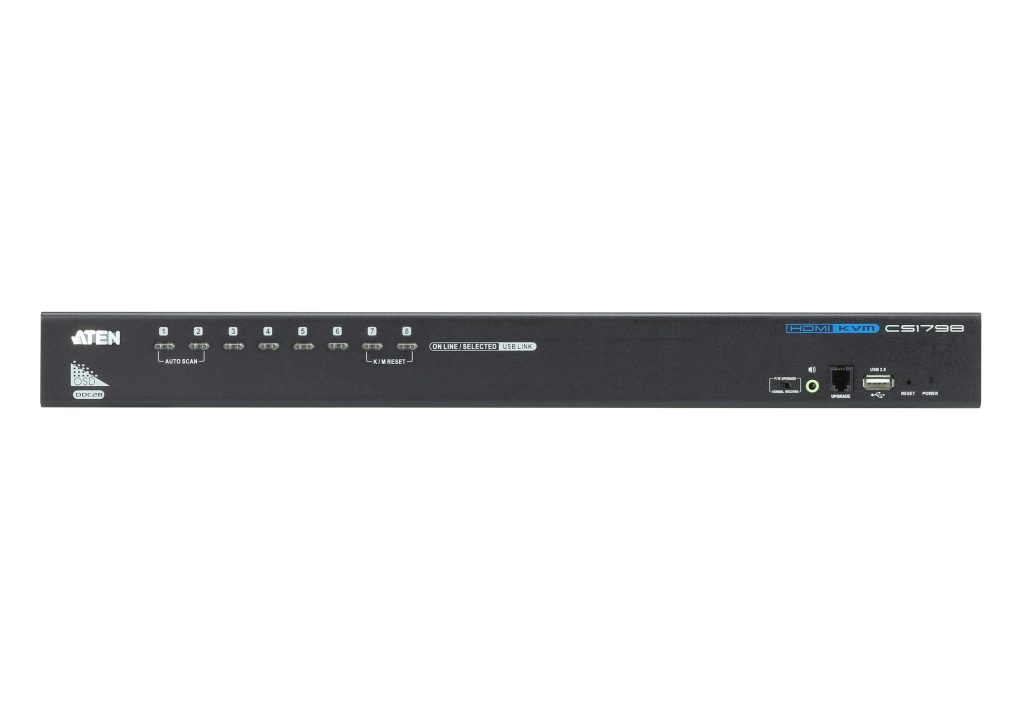

The CS1798 is a multi-purpose 8-port USB HDMI KVM switch that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, mouse and monitor console. It can be cascaded up to three levels to control up to 512 computers, and its Multi-Display feature stacks up to eight CS1798 units so each computer can drive dual, triple, quad or multi-monitor workstations.
Video runs at up to 1920 x 1080 @ 60 Hz and 1920 x 1200 @ 60 Hz with HDCP compatibility, and ATEN’s Video DynaSync technology eliminates boot-up display problems while optimizing resolution when switching ports. A built-in 2-port USB 2.0 hub, independent KVM/USB focus switching, multilingual OSD with backup/restore, broadcast mode and 2.1-channel audio round out the feature set. The metal housing measures 43.24 x 25.72 x 4.40 cm and weighs 3.49 kg; firmware v1.3.128 was released 2025-08-01.

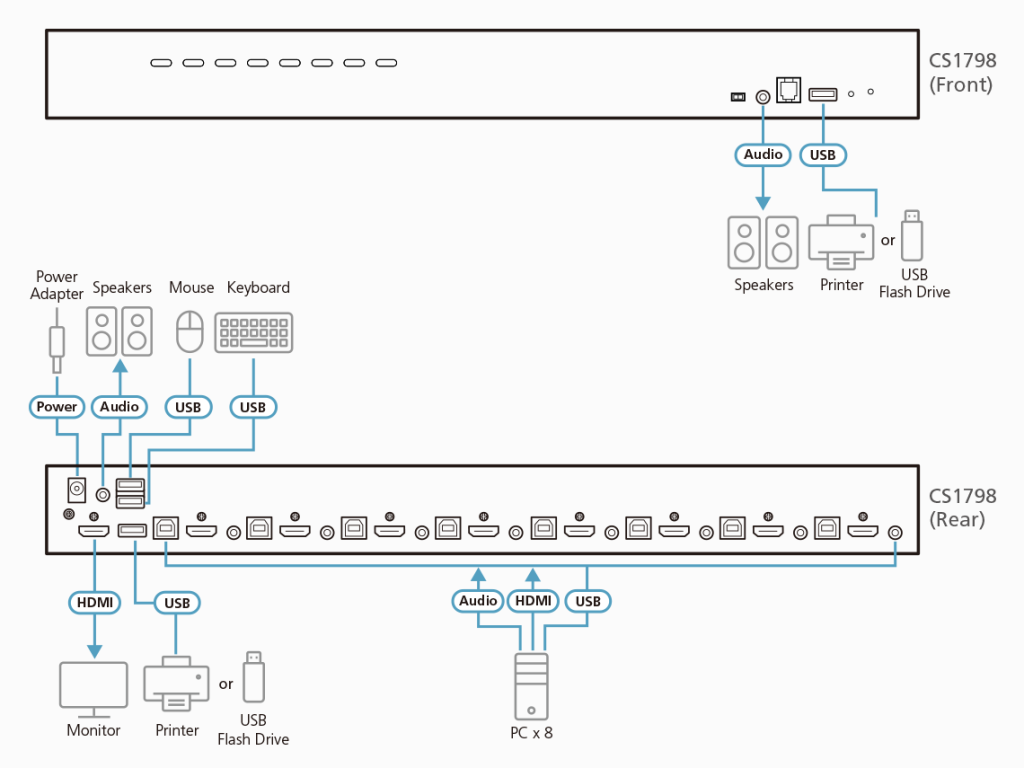

- One USB console controls 8 HDMI computers plus 2 USB 2.0 peripheral ports
- Cascadable three levels to control up to 512 computers
- Multi-Display: stack up to 8 units for dual/triple/quad/multi-display
- Video up to 1920 x 1080 @ 60 Hz and 1920 x 1200 @ 60 Hz, HDCP compatible
- Video DynaSync eliminates boot-up display problems when switching
- Multilingual OSD, broadcast mode, firmware upgradable (v1.3.128, 2025-08-01)
- Metal housing 43.24 x 25.72 x 4.40 cm, 3.49 kg, 0-50 degC operation
| Ports | Direct 8; maximum 512 (via cascade) |

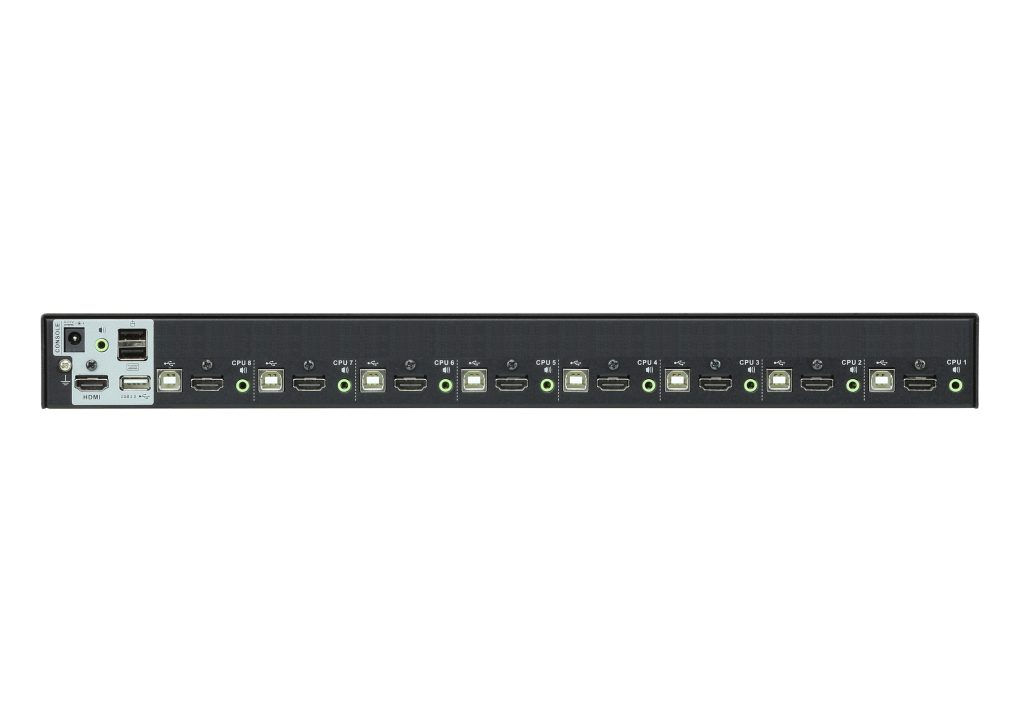

| Console | 1 x HDMI, 2 x USB Type A, 2 x 3.5 mm audio jack |
| Video | 1920 x 1080 @ 60 Hz; 1920 x 1200 @ 60 Hz; HDCP compatible |
| USB Hub | 2 x USB 2.0 |
| Dimensions | 43.24 x 25.72 x 4.40 cm, 3.49 kg, metal housing |
| Environment | 0-50 degC operating; -20-60 degC storage; 0-80% RH non-condensing |
| Firmware | v1.3.128 (2025-08-01) |
