Product Overview

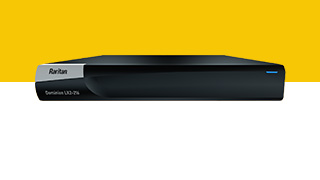

Dominion LX II is Raritan’s economical KVM-over-IP line for small to midsize businesses, labs and network rooms. It provides Java-free, BIOS-level IP access with one or two remote users plus one local VGA/USB port, controlling 8 servers (DLX2-108) or 16 servers (DLX2-116 / DLX2-216 with two remote users). Remote video runs at up to 1920 x 1080 and 1920 x 1200 HD at 15 frames per second.
Productivity features include virtual media, absolute mouse synchronization and PC Share, with security via TLS, AES and directory integration (Active Directory, LDAP, RADIUS). Computer Interface Modules (D2CIM) cover VGA, DVI, HDMI, DisplayPort and USB-C servers, and optional Dominion Serial Access Modules manage 2-8 serial devices. The family is also available as combination KVM switch / T1700-LED LCD drawer 1U units.
- Java-free, BIOS-level IP access for SMBs, labs and network rooms
- 8 or 16 servers: DLX2-108, DLX2-116 (1 remote user), DLX2-216 (2 remote users) plus 1 local port
- HD remote video up to 1920 x 1080 / 1920 x 1200 @ 15 fps
- Virtual media, absolute mouse synchronization and PC Share included
- Optional 2-8 serial devices via Dominion Serial Access Modules (DSAM)
- Strong security: TLS, AES, Active Directory / LDAP / RADIUS
- Available as 1U switch or integrated KVM + T1700-LED LCD drawer
| Models | DLX2-108 / DLX2-116 / DLX2-216 (plus -LED drawer variants) |
| Servers | 8 or 16 |
| Users | 1-2 remote + 1 local |
| Video | 1920 x 1080 / 1920 x 1200 @ 15 fps |
| CIM Modules | D2CIM-DVUSB (VGA), -DVI, -HDMI, -DP, VUSB-USBC; DSAM serial |
| Security | TLS, AES, AD/LDAP/RADIUS |
Frequently Asked Questions
How do I choose the right Raritan Dominion LX for my site?
Consider capacity, site power, environment and monitoring needs. Share your requirements with BS Comtec and we will compare suitable models from multiple brands for you.
Is Raritan Dominion LX compatible with my existing equipment?
Compatibility depends on your electrical infrastructure and connected devices. Our engineers can review your setup and confirm interfaces and integration before you order.
Does BS Comtec ship Raritan Dominion LX internationally?
Yes. BS Comtec ships worldwide and freight options depend on destination, weight and urgency. Contact us for a shipping quote to your location.
What warranty and after-sales support are available for Raritan Dominion LX?
Warranty follows the manufacturer policy for your region, and BS Comtec provides technical documentation and engineer-level support throughout the project.
