Product Overview
The Eaton 9PX series is a best-in-class online double-conversion UPS platform covering 1500-3000 VA/W models in a convertible rack/tower form factor. With unity output power factor, the 9PX delivers more real power to connected IT equipment than conventional UPS of the same VA rating. The double-conversion topology continuously regulates voltage and frequency, providing zero transfer time to battery and complete isolation from mains disturbances.
Each 9PX unit integrates an internal automatic bypass for service continuity, a next-generation graphical LCD display, and a network management card supplied as standard. Advanced Battery Management (ABM) with temperature-compensated charging extends battery service life, while hot-swappable batteries and support for up to four extended battery modules allow runtime expansion without shutting down connected loads. Energy consumption can be metered down to managed outlet groups.

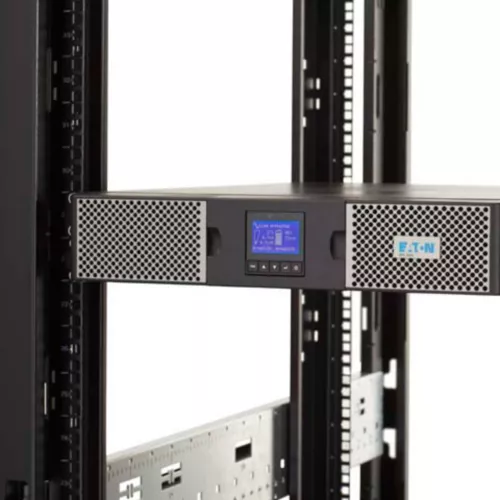

The 9PX3000IRTN reference model provides 3000 VA / 3000 W in only 2U, with (8) C13 and (2) C19 output receptacles, 176-276 V input without derating (100-276 V with derating) and a 40-70 Hz input frequency window. The platform is ENERGY STAR qualified and certified to IEC/EN 62040-1/-2 and UL 1778, and works with Eaton Intelligent Power Manager software for centralised monitoring of distributed IT sites.
Key Features
- Online double-conversion topology with zero transfer time to battery
- Unity power factor (VA=W) output for more usable power in the same footprint
- Up to 94% efficiency online and 98% in high-efficiency ECO mode
- Internal automatic bypass and hot-swappable batteries with ABM charging
- Network card and rack/tower mounting kit included as standard
- ENERGY STAR qualified; certified to IEC/EN 62040-1/-2 and UL 1778
Specifications
| Parameter | Value |
|---|---|
| Capacity | 1500-3000 VA / 1500-3000 W (unity output power factor) |
| Voltage | Output 200/208/220/230/240 V AC +/-1%; input 176-276 V without derating (100-276 V with derating), 40-70 Hz |
| Dimensions | 44 x 60.5 x 8.65 cm, 2U rack/tower (9PX3000IRTN) |
| Weight | 28.1 kg (9PX3000IRTN) |
| Operating Temperature | 0 to +40 degC; altitude up to 3000 m |
| Efficiency | 94% at full load online; 98% in ECO mode |
| Protection | Internal automatic bypass; ABM and deep-discharge battery protection; CE, TUV, cULus listed; IEC/EN 62040-1/-2, UL 1778 |
| Other | Outputs (8) C13 + (2) C19, input C20; network card included; USB/serial/SNMP; runtime approx. 3 min at full load and 9.5 min at half load (3000 VA model) |
