Product Overview

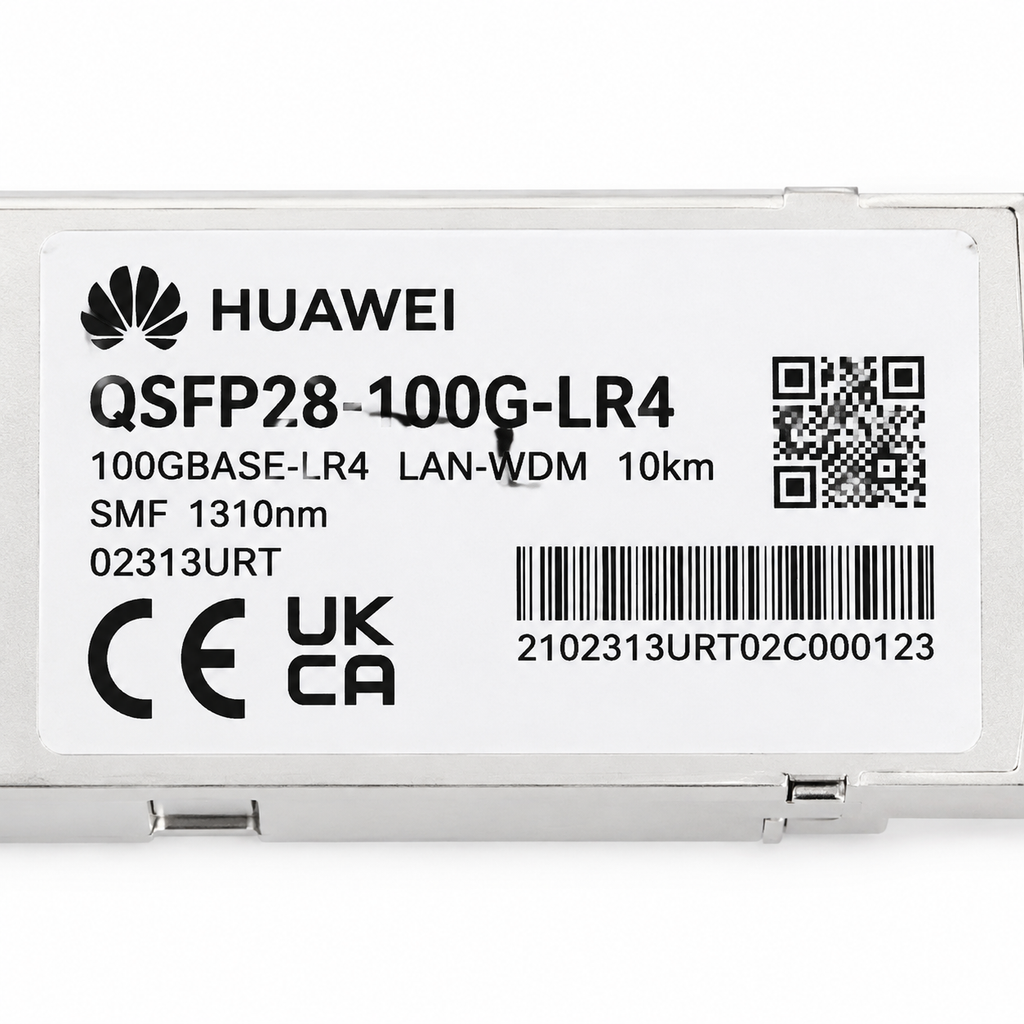

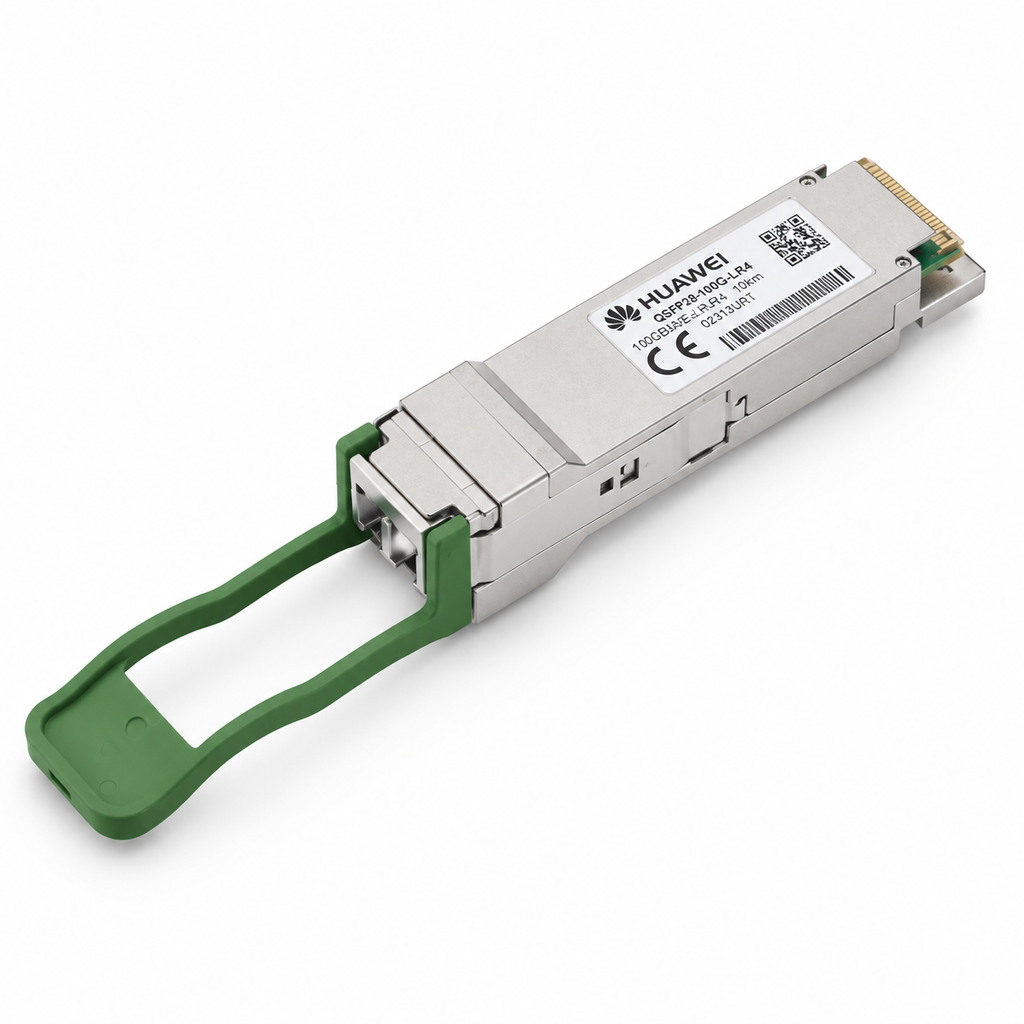

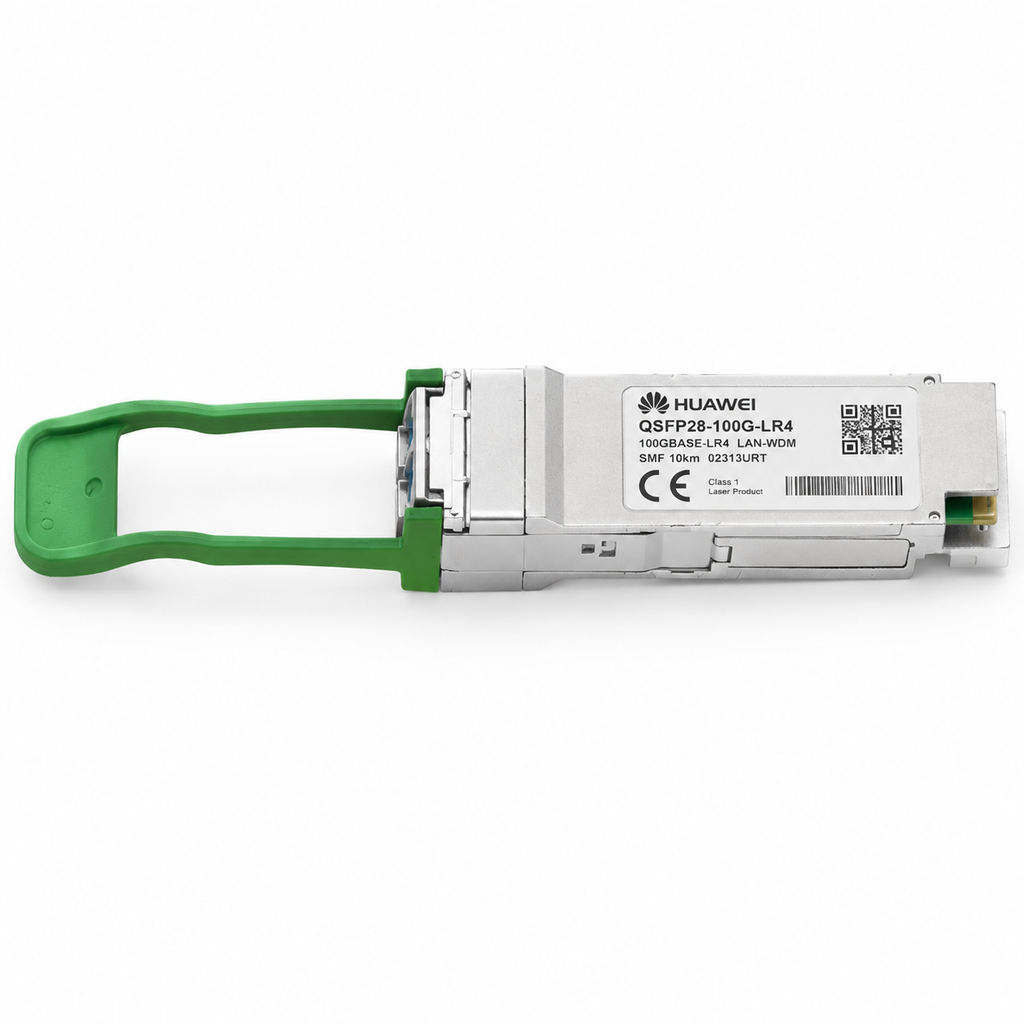

The QSFP28-100G-LR4 (Huawei part number 02313URT) implements 103.125 Gbit/s 100GBASE-LR4 transmission as four 25G LAN-WDM lanes at 1295, 1300, 1304 and 1309 nm multiplexed onto a duplex LC singlemode pair, with a documented 10 km target distance. Huawei specifies maximum average Tx power of +4.5 dBm and confirms the digital diagnostics (DDM) function is supported for this part.
The 10 km LR4 reach covers campus rings, metro-access spans and dark-fiber DCI between sites, using the same duplex LC cabling plant as 10G LR, which makes it the default choice wherever links exceed the 2 km CWDM4 budget. Operation is specified over a 0°C to +70°C case temperature range.
Typical applications include 100G uplinks between buildings and campuses, metro 100G rings on leased dark fiber, and inter-data-center links up to 10 km between Huawei CloudEngine-class switches.
- 100GBASE-LR4 over 4 LAN-WDM wavelengths (1295/1300/1304/1309 nm)
- 10 km reach on singlemode fiber per Huawei documentation (02313URT)
- Max Tx power +4.5 dBm; digital diagnostics (DDM) supported
- Duplex LC interface over standard duplex SMF plant
- 0°C to +70°C commercial case temperature range
| Rate | 103.125 Gbit/s (100GBASE-LR4, 4×25G LAN-WDM) |
| Interface | QSFP28, LC duplex |
| Wavelength | 1295/1300/1304/1309 nm (LAN-WDM) |
| Reach | 10 km on SMF |
| Fiber | SMF |
| DDM/DOM | Yes – digital diagnostics supported (per Huawei 02313URT doc) |
| Operating Temperature | 0°C to +70°C (case) |
| Compatibility | Huawei QSFP28 slots, 100GBASE-LR4 (IEEE 802.3ba) |
Key Features of QSFP28-100G-LR4 100GBASE-LR4 LAN-WDM
QSFP28-100G-LR4 100GBASE-LR4 LAN-WDM belongs to the pluggable optical transceiver family used for high-speed data links. Modules of this class commonly cover form factors such as SFP, SFP+, SFP28, QSFP+, QSFP28 and QSFP-DD, with multimode and singlemode variants for different reach requirements.
Typical Applications of QSFP28-100G-LR4 100GBASE-LR4 LAN-WDM
Optical modules of this type are widely used for switch-to-switch links, storage networks, data center interconnects and telecom transmission equipment. Match the module to your switch vendor, wavelength and link distance before ordering.
Selecting QSFP28-100G-LR4 100GBASE-LR4 LAN-WDM with BS Comtec
BS Comtec supplies optical transceivers from Huawei, Cisco, Accelink and other brands with global delivery. Send us your switch model, port type and required distance, and we will recommend compatible modules and provide pricing.
Frequently Asked Questions
How do I choose the right QSFP28-100G-LR4 100GBASE-LR4 LAN-WDM for my network?
Check your equipment port type, data rate, fiber type (multimode or singlemode), wavelength and link distance. BS Comtec can cross-check these details and suggest compatible options from multiple brands.
Is QSFP28-100G-LR4 100GBASE-LR4 LAN-WDM compatible with my switch or router?
Most platforms work with standard-compliant modules, while some vendors apply compatibility lists or coded modules. Share your device model with BS Comtec and we will confirm suitability before shipment.
How is QSFP28-100G-LR4 100GBASE-LR4 LAN-WDM packed and delivered?
Modules are shipped in anti-static packaging suitable for international transport. BS Comtec arranges global delivery, and shipping options depend on destination and urgency — contact us for details.
What warranty applies to QSFP28-100G-LR4 100GBASE-LR4 LAN-WDM?
Warranty follows the manufacturer’s policy for the specific part number. BS Comtec supports replacement and RMA coordination according to the terms confirmed in your order.
Where is QSFP28-100G-LR4 100GBASE-LR4 LAN-WDM typically used?
It is typically used in data centers, enterprise networks, carrier transmission and campus backbones for high-speed fiber connections between switches, routers and storage systems.
