Product Overview

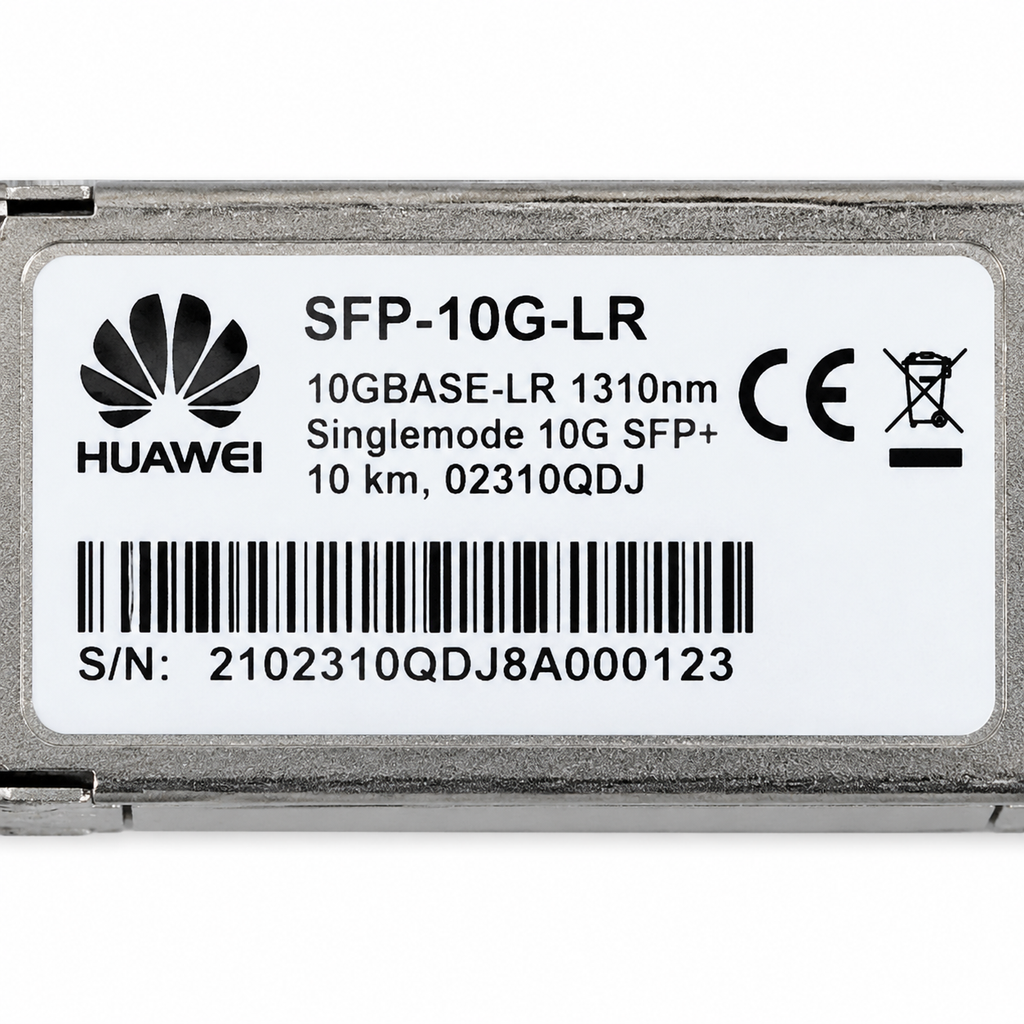

The SFP-10G-LR (Huawei part number 02310QDJ) implements 10.3125 Gbit/s 10GBASE-LR transmission at a 1310 nm center wavelength over singlemode fiber. Huawei hardware descriptions specify a 10 km target distance on G.652 SMF, maximum Tx power of +0.5 dBm, minimum Tx power of -8.2 dBm, a minimum extinction ratio of 3.5 dB and receiver sensitivity of -12.6 dBm.

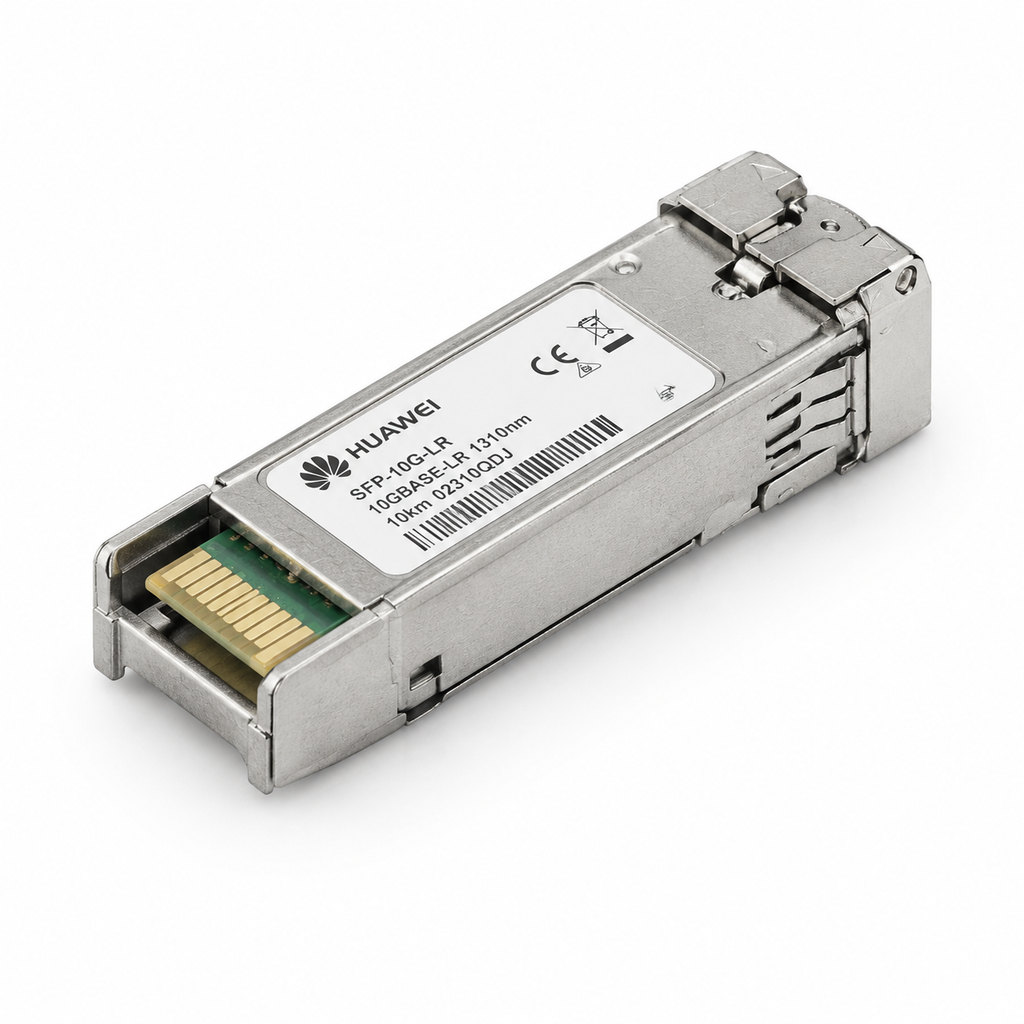

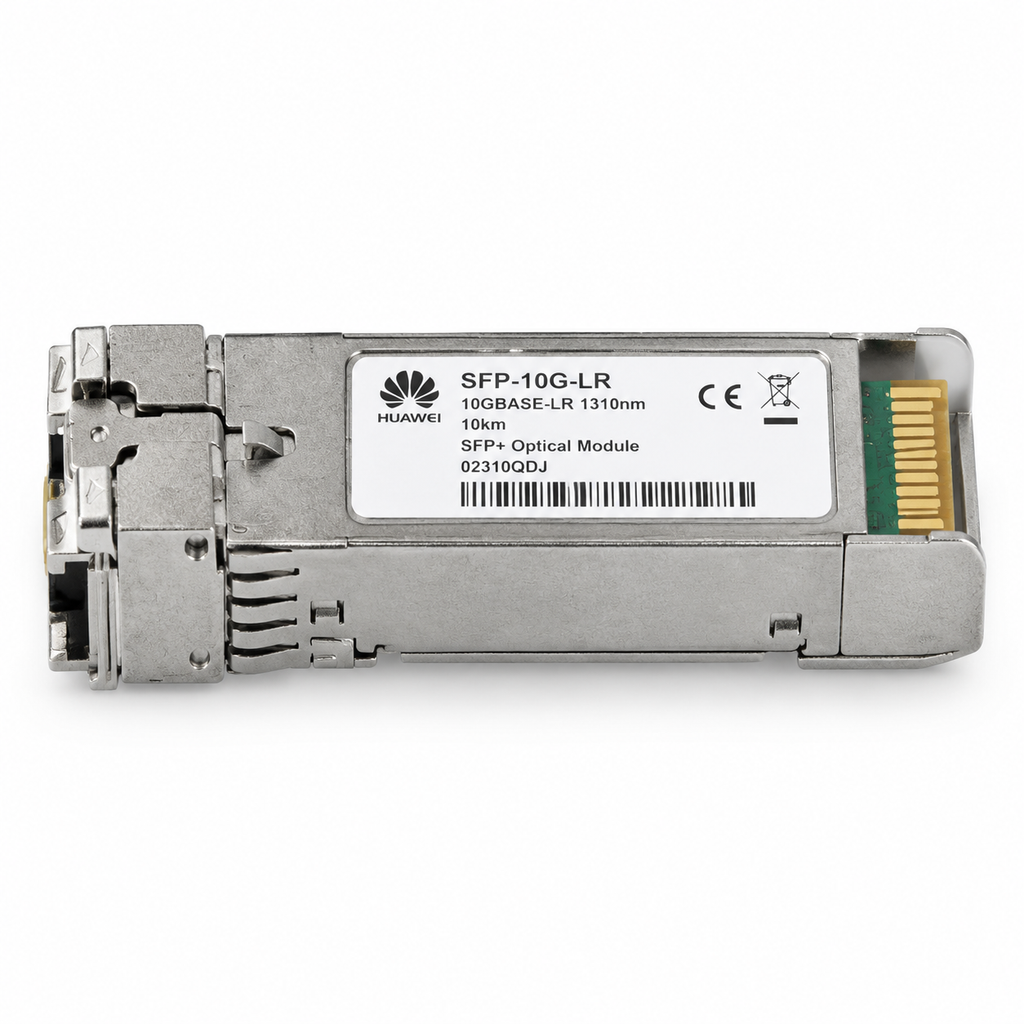

The module uses an LC duplex connector in the standard SFP+ footprint and a 0°C to +70°C commercial case temperature range. It is the workhorse 10G singlemode module for links that leave the data hall: between buildings, across a campus, or to a carrier meet-me room.
Typical applications include 10G uplinks and metro-access spans between Huawei switches and routers over dark fiber, point-to-point links up to 10 km, and connections to DWDM/OTN transport equipment in the same building.
- 10GBASE-LR 10.3125 Gbit/s transmission over 1310 nm SMF
- 10 km reach on G.652 singlemode fiber per Huawei documentation (02310QDJ)
- Tx -8.2 to +0.5 dBm, receiver sensitivity -12.6 dBm, extinction ratio >= 3.5 dB
- LC duplex connector, hot-pluggable SFP+ footprint
- 0°C to +70°C commercial case temperature range
| Rate | 10.3125 Gbit/s (10GBASE-LR) |
| Interface | SFP+, LC duplex |
| Wavelength | 1310 nm |
| Reach | 10 km on SMF (G.652) |
| Fiber | SMF (G.652) |
| Operating Temperature | 0°C to +70°C (case) |
| Compatibility | Huawei SFP+ slots, 10GBASE-LR (IEEE 802.3ae) |
