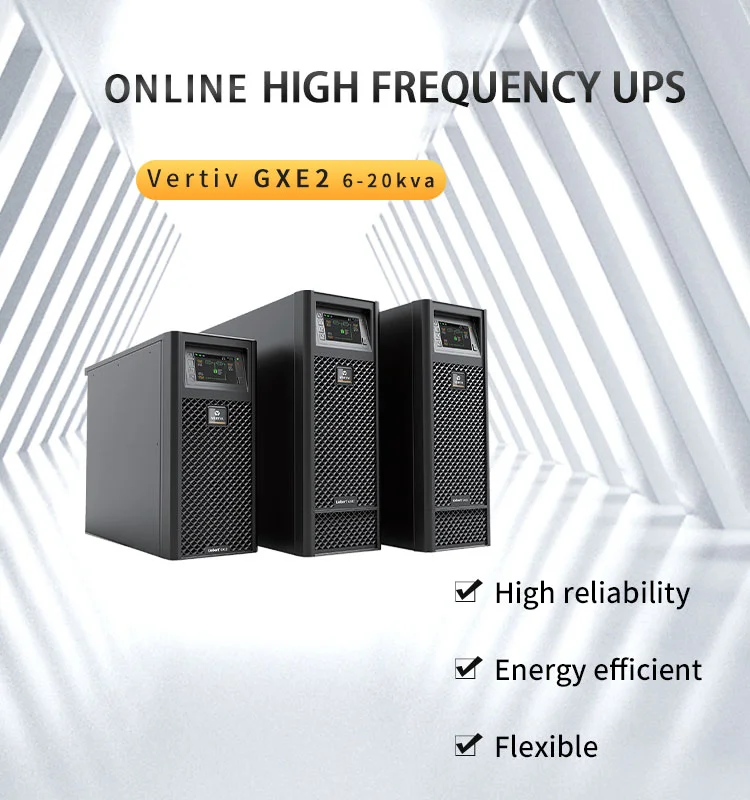

Vertiv GXE2 20kVA Online UPS. Model GXE2.

Product Overview

The VERTIV GXE series delivers 20kVA of true online double-conversion power protection, engineered for small-to-mid data centers, server rooms, and industrial control cabinets where uptime is non-negotiable.

Where This UPS Fits in Real-World Deployments

Imagine a regional bank branch processing card transactions through the night — a single power sag would freeze 40 POS terminals and force a branch manager to apologize to every customer in line. The VERTIV GXE prevents exactly that scenario. It is the workhorse behind:

• Edge data centers (5–20 racks) needing N+1 redundancy without oversizing
• Server rooms in SMB and enterprise branch offices where downtime costs $5,000+ per hour
• Industrial control cabinets in manufacturing lines where a voltage dip can scrap a batch
• Telecom base stations requiring stable -48Vdc for sensitive radio equipment

What Distinguishes the VERTIV GXE from Generic UPS Systems

Most UPS products on the market claim “online double-conversion” on the spec sheet, but only a handful actually deliver the input power factor, output voltage regulation, and overload tolerance that real mission-critical loads demand. The VERTIV GXE is designed with three engineering commitments:

1. True double-conversion topology with zero transfer time — not a marketing label, but a measurable 0 ms switchover verified under load
2. Wide input voltage window (typically 110–300V without switching to battery) so the unit stays in online mode through brownouts that would drain other UPS batteries prematurely
3. High output power factor (1.0 on most modern VERTIV units) so you can load the UPS to its rated kW, not just kVA — eliminating the common mistake of oversizing by 30%

Buyer’s Question: Is VERTIV GXE the Right Capacity for My Load?

The general sizing rule: add up the wattage of every device you need to protect, multiply by 1.25 for future growth, and that becomes your minimum kVA target. For example:

• 10 Amps × 230V = 2.3 kW continuous load → choose a 3 kVA UPS (1.3× headroom)
• 20 Amps × 230V = 4.6 kW load → choose a 5 kVA or 6 kVA UPS
• 40 Amps × 230V = 9.2 kW load → choose a 10 kVA UPS

If your load includes motors, laser printers, or medical imaging equipment, plan for 2× inrush headroom.

Typical Runtime Scenarios

With internal batteries at full load, expect 5–10 minutes of backup — enough for an orderly shutdown. With external battery cabinets, runtime extends to 30 minutes, 1 hour, or 4+ hours depending on configuration. The VERTIV GXE supports hot-swappable battery modules so replacement does not require a service window.

Integration and Monitoring

The VERTIV GXE ships with RS-232 and supports optional SNMP, Modbus, and dry-contact cards for integration with DCIM platforms, BMS systems, and remote monitoring dashboards. IT teams in multi-site organizations typically deploy the SNMP card across all units to centralize alerts.

Procurement Considerations

BS Comtec is an authorized channel partner for VERTIV in international markets. We supply genuine factory-sealed units with full warranty coverage. For pricing, lead time, and configuration support, please contact our sales engineering team with your load profile and deployment timeline.

Contact us for specifications and quotation.

Frequently Asked Questions

How do I choose the right GXE2 20kVA Online for my site?

Consider load size (kVA/kW), runtime, input/output phases, form factor and monitoring needs. Share your requirements with BS Comtec and we will compare suitable models from multiple brands for you.

Is GXE2 20kVA Online compatible with my existing equipment?

Compatibility depends on your electrical infrastructure and connected devices. Our engineers can review your setup and confirm interfaces, battery options and monitoring integration before you order.

Does BS Comtec ship GXE2 20kVA Online internationally?

Yes. BS Comtec ships worldwide from our supply channels, and freight options depend on destination, weight and urgency. Contact us for a shipping quote to your location.

What warranty and after-sales support are available for GXE2 20kVA Online?

Warranty terms follow the manufacturer’s policy for the specific model and order. BS Comtec assists with documentation, spare parts inquiries and service coordination throughout the purchase.

In which scenarios is GXE2 20kVA Online typically deployed?

It is commonly deployed in data centers, network rooms, industrial automation and other facilities that require clean, uninterrupted power for critical loads.
